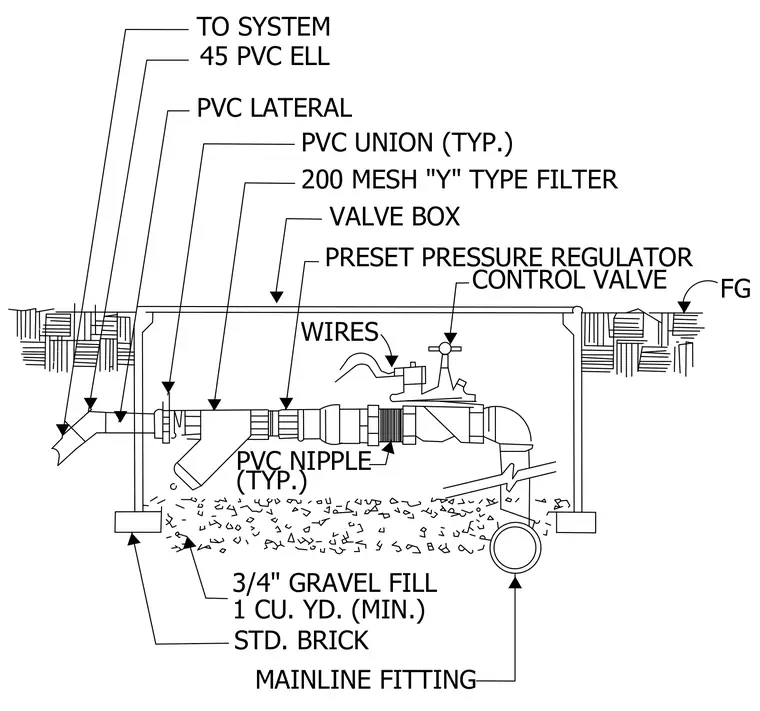

An underground irrigation control valve assembly is housed within a protective valve box. The system connects to the mainline fitting and routes through a two-hundred mesh Y-type filter, a preset pressure regulator, and a control valve with connected control wires. Piping consists of PVC laterals joined with typical PVC unions and PVC nipples, transitioning upward to forty-five degree PVC elbows leading to the irrigation system. The entire valve box rests on a minimum of one cubic yard of three-quarter inch gravel fill set over standard bricks, finished flush with the surrounding finished grade.
TO SYSTEM 45 PVC ELL PVC LATERAL PVC UNION (TYP.) 200 MESH "Y" TYPE FILTER VALVE BOX PRESET PRESSURE REGULATOR CONTROL VALVE WIRES PVC NIPPLE (TYP.) MAINLINE FITTING 3/4" GRAVEL FILL 1 CU. YD. (MIN.) STD. BRICK FG
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
