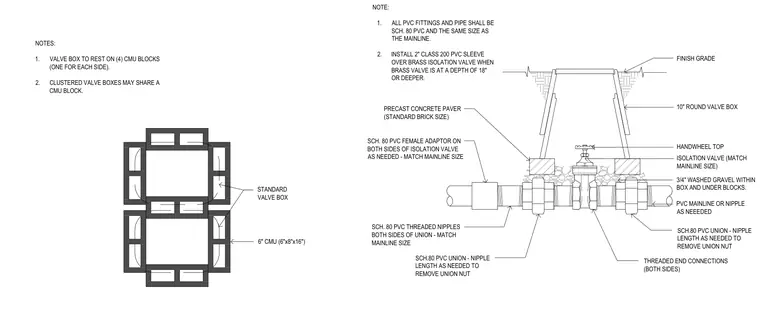

A mainline drain valve assembly housed within a 10-inch round valve box set over 3/4-inch washed gravel bedding. The valve box rests on four 6-inch by 8-inch by 16-inch concrete masonry unit blocks, with clustered boxes permitted to share a single block. The assembly incorporates schedule 80 PVC piping and fittings matched to the mainline size, connected via schedule 80 PVC threaded nipples and schedule 80 PVC unions with a nipple length sized to allow removal of the union nut. Schedule 80 PVC female adaptors connect the mainline to a brass isolation valve featuring threaded end connections and a handwheel top. Precast concrete pavers of standard brick size are placed beneath the valve box support, and a 2-inch class 200 PVC sleeve is installed over the brass isolation valve when the valve is positioned at a depth of 18 inches or deeper.
STANDARD VALVE BOX 6" CMU (6"x8"x16") NOTES: 1. VALVE BOX TO REST ON (4) CMU BLOCKS (ONE FOR EACH SIDE). 2. CLUSTERED VALVE BOXES MAY SHARE A CMU BLOCK. 10" ROUND VALVE BOX FINISH GRADE ISOLATION VALVE (MATCH MAINLINE SIZE) SCH.80 PVC UNION - NIPPLE LENGTH AS NEEDED TO REMOVE UNION NUT SCH. 80 PVC THREADED NIPPLES BOTH SIDES OF UNION - MATCH MAINLINE SIZE SCH. 80 PVC FEMALE ADAPTOR ON BOTH SIDES OF ISOLATION VALVE AS NEEDED - MATCH MAINLINE SIZE PVC MAINLINE OR NIPPLE AS NEEEDED SCH.80 PVC UNION - NIPPLE LENGTH AS NEEDED TO REMOVE UNION NUT NOTE: 1. ALL PVC FITTINGS AND PIPE SHALL BE SCH. 80 PVC AND THE SAME SIZE AS THE MAINLINE. 2. INSTALL 2" CLASS 200 PVC SLEEVE OVER BRASS ISOLATION VALVE WHEN BRASS VALVE IS AT A DEPTH OF 18" OR DEEPER. HANDWHEEL TOP THREADED END CONNECTIONS (BOTH SIDES) PRECAST CONCRETE PAVER (STANDARD BRICK SIZE) 3/4" WASHED GRAVEL WITHIN BOX AND UNDER BLOCKS.
