Safety Shower Recessed

Materials

Elements

About this detail

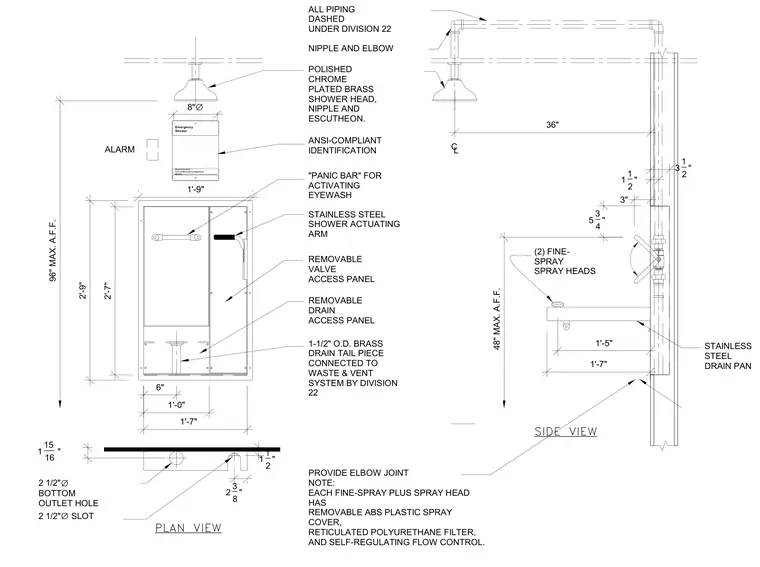

This assembly details a recessed emergency safety shower and eyewash station with plan, elevation, and side views showing mounting clearances and connection points. The unit incorporates a polished chrome-plated brass shower head with a nipple and escutcheon, a stainless steel shower actuating arm, two fine-spray spray heads, and a panic bar for activating the eyewash. Access panels are provided for both the valve and the drain, along with a stainless steel drain pan connected via a one-and-a-half-inch outside diameter brass drain tail piece to the waste and vent system. Dimensions indicate a maximum ninety-six-inch above finished floor height for the shower head and forty-eight inches above finished floor for the eyewash spray heads. Piping and connections are routed per Division 22 specifications.
