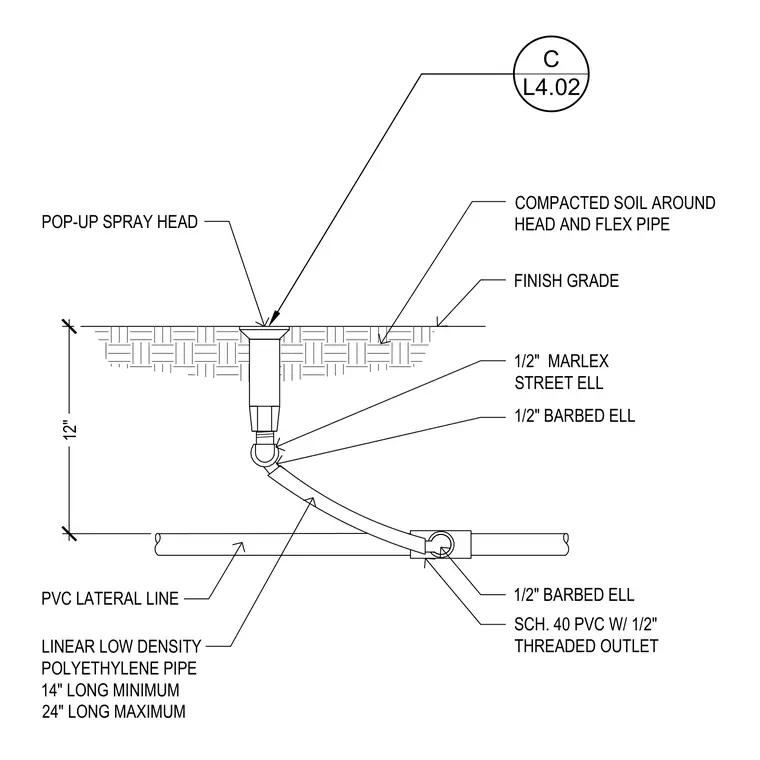

A pop-up spray head connects to a schedule 40 PVC lateral line with a half-inch threaded outlet through a flexible drop assembly. The assembly utilizes a half-inch Marlex street ell at the spray head and half-inch barbed ells at each end of a linear low-density polyethylene pipe. This flexible swing joint measures between fourteen inches minimum and twenty-four inches maximum in length to prevent damage from heavy maintenance equipment or ground movement. Compacted soil surrounds the head, flex pipe, and lateral line up to the finish grade.
FINISH GRADE COMPACTED SOIL AROUND HEAD AND FLEX PIPE POP-UP SPRAY HEAD 1/2" MARLEX STREET ELL 1/2" BARBED ELL 12" 1/2" BARBED ELL LINEAR LOW DENSITY POLYETHYLENE PIPE 14" LONG MINIMUM 24" LONG MAXIMUM PVC LATERAL LINE SCH. 40 PVC W/ 1/2" THREADED OUTLET C L4.02
