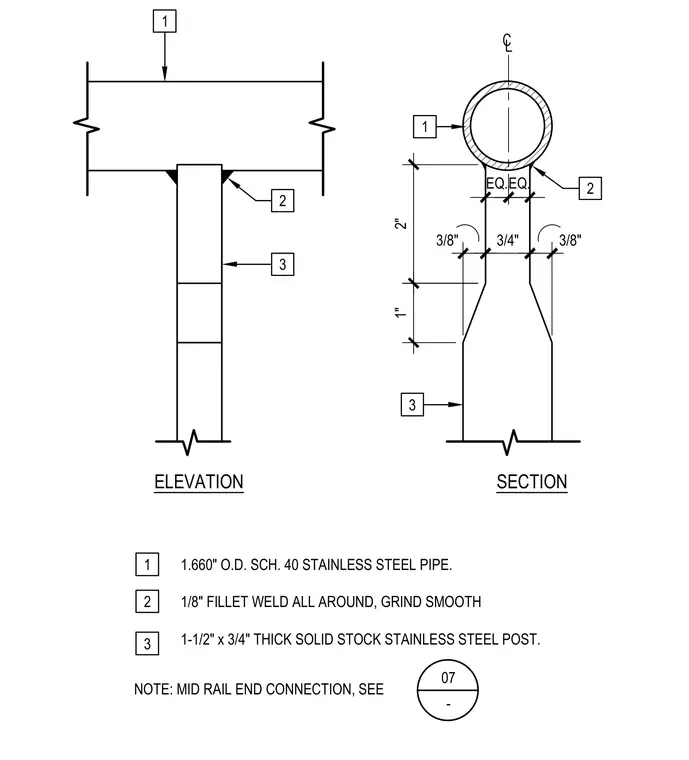

A 1.660-inch outside diameter schedule 40 stainless steel pipe mid rail connects to a 1-1/2-inch by 3/4-inch thick solid stock stainless steel post. The pipe rail is joined to the post with an 1/8-inch fillet weld all around and ground smooth. The solid stock post tapers down from a width matching the rail connection.
1 2 3 1 2 3 3 SECTION ELEVATION 3/8" 3/4" 1 EQ. EQ. 2 2" 1" 3/8" 07 - NOTE: MID RAIL END CONNECTION, SEE 1.660" O.D. SCH. 40 STAINLESS STEEL PIPE. 1/8" FILLET WELD ALL AROUND, GRIND SMOOTH 1-1/2" x 3/4" THICK SOLID STOCK STAINLESS STEEL POST.
