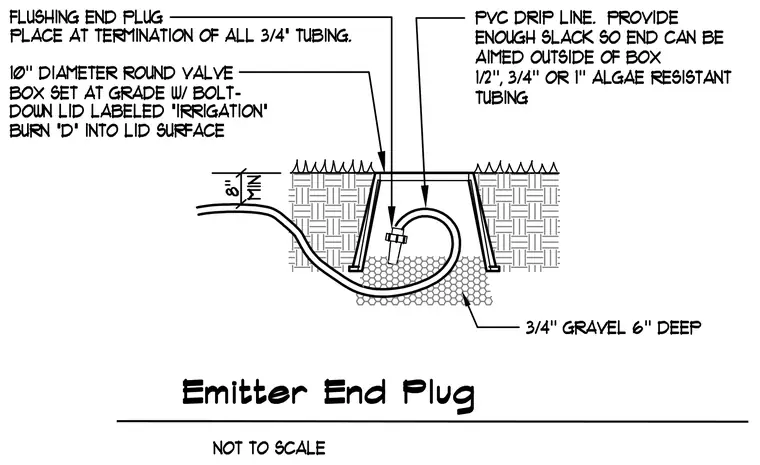

An irrigation drip line terminates inside a ten-inch diameter round valve box set flush at grade on a six-inch deep bed of three-quarter-inch gravel. The box features a bolt-down lid labeled 'IRRIGATION' with the letter 'D' burned into its surface. The drip tubing utilizes half-inch, three-quarter-inch, or one-inch algae-resistant PVC tubing with enough slack to be aimed outside of the box. A flushing end plug is placed at the termination of all three-quarter-inch tubing.
