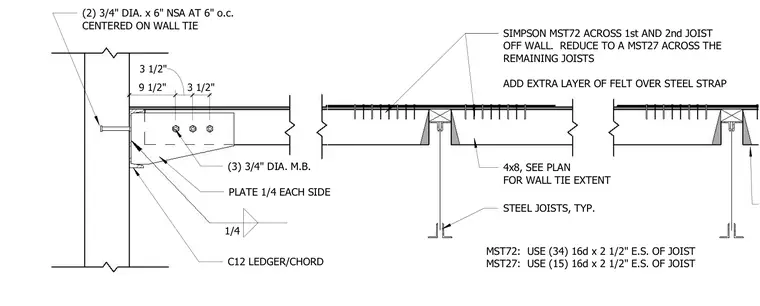

This connection details a panel roof tying into a wall using a C12 ledger or chord reinforced with quarter-inch plates on each side and fastened with three three-quarter-inch diameter machine bolts. Two three-quarter-inch diameter by six-inch nail-attached structural anchors spaced at six inches on center center on the wall tie. Steel joists span from the ledger with an extra layer of felt over the steel strap. A Simpson MST72 strap fastens across the first and second joists off the wall using thirty-four sixteen-penny by two-and-a-half-inch nails each side of the joist, reducing to an MST27 strap across the remaining joists fastened with fifteen sixteen-penny by two-and-a-half-inch nails each side.
(3) 3/4" DIA. M.B. PLATE 1/4 EACH SIDE C12 LEDGER/CHORD 4x8, SEE PLAN FOR WALL TIE EXTENT (2) 3/4" DIA. x 6" NSA AT 6" o.c. CENTERED ON WALL TIE STEEL JOISTS, TYP. SIMPSON MST72 ACROSS 1st AND 2nd JOIST OFF WALL. REDUCE TO A MST27 ACROSS THE REMAINING JOISTS ADD EXTRA LAYER OF FELT OVER STEEL STRAP 1/4 9 1/2" 3 1/2" 3 1/2" MST72: USE (34) 16d x 2 1/2" E.S. OF JOIST MST27: USE (15) 16d x 2 1/2" E.S. OF JOIST
