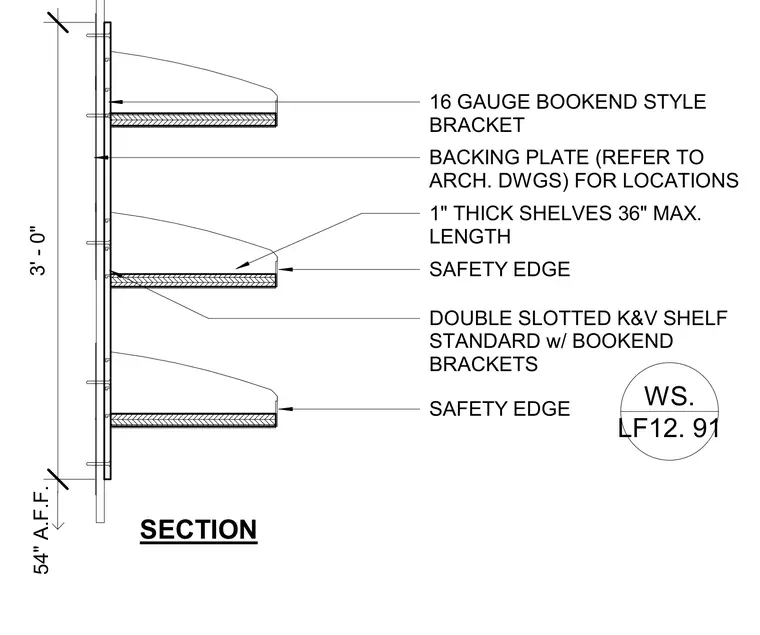

This adjustable wall shelving assembly features a double-slotted K&V shelf standard supported by a backing plate located per architectural drawings. Sixteen gauge bookend-style brackets engage the slotted standard to support one-inch thick shelves with a maximum length of thirty-six inches. Each shelf incorporates a safety edge at the front. The bottom of the assembly is installed at fifty-four inches above finished floor.
16 GAUGE BOOKEND STYLE BRACKET DOUBLE SLOTTED K&V SHELF STANDARD w/ BOOKEND BRACKETS SECTION BACKING PLATE (REFER TO ARCH. DWGS) FOR LOCATIONS 1" THICK SHELVES 36" MAX. LENGTH SAFETY EDGE 3' - 0" 54" A.F.F. WS. LF12. 91 SAFETY EDGE
