Concrete Stair Base and Paving Transition Section

Materials

Elements

Walls Retaining Walls Stairs Railings / Guards Site / Paving Reinforcing

About this detail

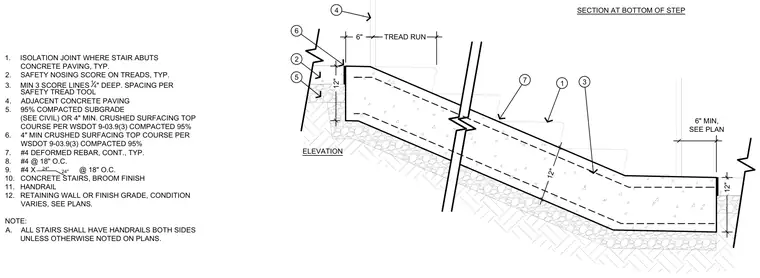

This concrete stair section details the bottom step and footing transition resting on a prepared subgrade or four inches of crushed surfacing top course compacted to ninety-five percent density. The broom-finished concrete stairs feature continuous number four deformed rebar with number four reinforcing bars spaced at eighteen inches on center. Safety nosing score lines and isolation joints are specified where the stair abuts adjacent concrete paving. A six-inch minimum depth is maintained at the base step resting on the compacted subgrade.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
