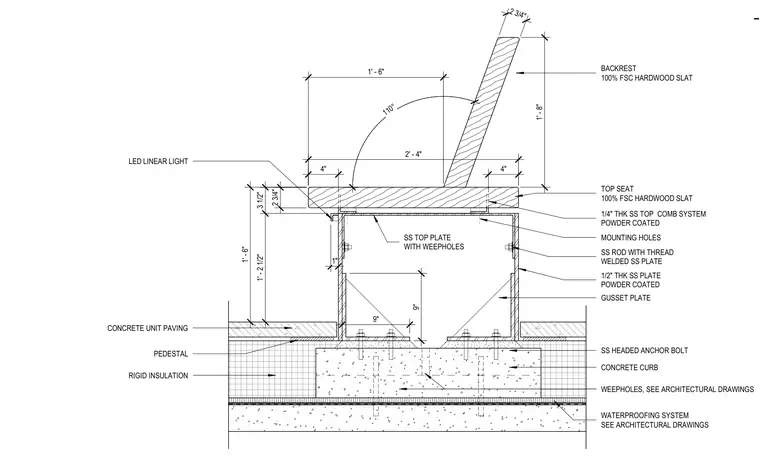

A custom linear bench assembly features one hundred percent Forest Stewardship Council certified hardwood slats for the top seat and backrest, set at a one hundred ten degree angle. The seat rests on a one-quarter-inch-thick stainless steel top comb system and a stainless steel top plate with weepholes, mounted over a hollow support frame fabricated from one-half-inch-thick powder-coated stainless steel plates stiffened with internal gusset plates and connected with threaded stainless steel rods. An LED linear light is integrated beneath the front seat overhang. The entire steel support assembly is anchored with stainless steel headed anchor bolts into a concrete curb, which bears over rigid insulation, pedestals, concrete unit paving, and a waterproofing system.
1' - 6" 2' - 4" 4" TOP SEAT 100% FSC HARDWOOD SLAT 1/2" THK SS PLATE POWDER COATED GUSSET PLATE SS HEADED ANCHOR BOLT 1/4" THK SS TOP COMB SYSTEM POWDER COATED CONCRETE CURB WATERPROOFING SYSTEM SEE ARCHITECTURAL DRAWINGS 1" LED LINEAR LIGHT CONCRETE UNIT PAVING PEDESTAL RIGID INSULATION 9" SS ROD WITH THREAD WELDED SS PLATE 1' - 2 1/2" 3 1/2" 2 3/4" MOUNTING HOLES WEEPHOLES, SEE ARCHITECTURAL DRAWINGS SS TOP PLATE WITH WEEPHOLES BACKREST 100% FSC HARDWOOD SLAT 4" 9" 110° 2 3/4" 1' - 8" 1' - 6"
