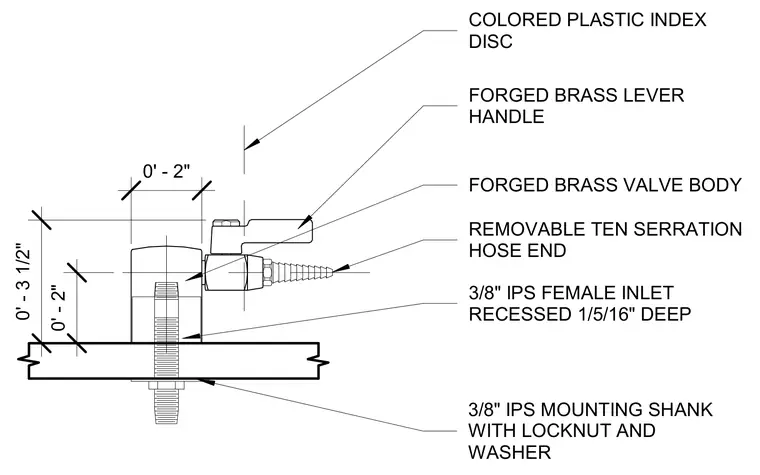

A deck-mounted forged brass valve body features a lever handle topped with a colored plastic index disc and a removable ten-serration hose end. The assembly connects via a 3/8-inch IPS female inlet and mounts through the deck using a 3/8-inch IPS mounting shank secured with a locknut and flat washer. The fixture body is recessed 1-5/16 inches deep into the mounting surface. Overall dimensions indicate a height of 3-1/2 inches from the deck surface to the top of the valve enclosure, with a 2-inch clearance dimension.
FORGED BRASS LEVER HANDLE 3/8" IPS MOUNTING SHANK WITH LOCKNUT AND WASHER COLORED PLASTIC INDEX DISC FORGED BRASS VALVE BODY REMOVABLE TEN SERRATION HOSE END 3/8" IPS FEMALE INLET RECESSED 1/5/16" DEEP 0' - 2" 0' - 3 1/2" 0' - 2"
