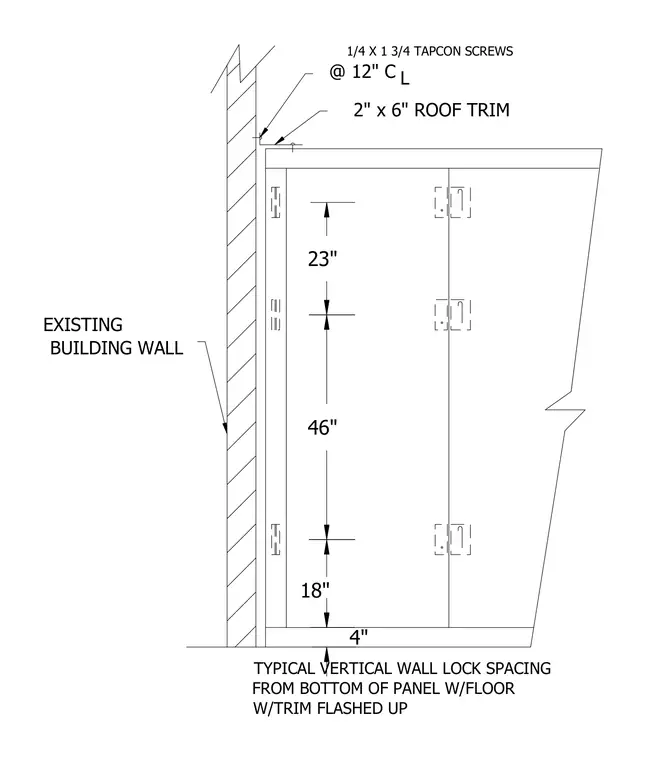

Two-inch by six-inch roof trim fastens to an existing building wall with one-quarter-inch by one-and-three-quarter-inch Tapcon screws spaced at twelve inches on center. The vertical wall lock spacing measures four inches from the bottom of the panel to the floor with trim flashed up. Additional vertical intervals are spaced at eighteen inches, forty-six inches, and twenty-three inches.
2" x 6" ROOF TRIM EXISTING BUILDING WALL @ 12" C L 1/4 X 1 3/4 TAPCON SCREWS TYPICAL VERTICAL WALL LOCK SPACING FROM BOTTOM OF PANEL W/FLOOR W/TRIM FLASHED UP 46" 4" 18" 23"
