Landscape · L-KZ3RM

Shrub Planting on Slope

Elements

About this detail

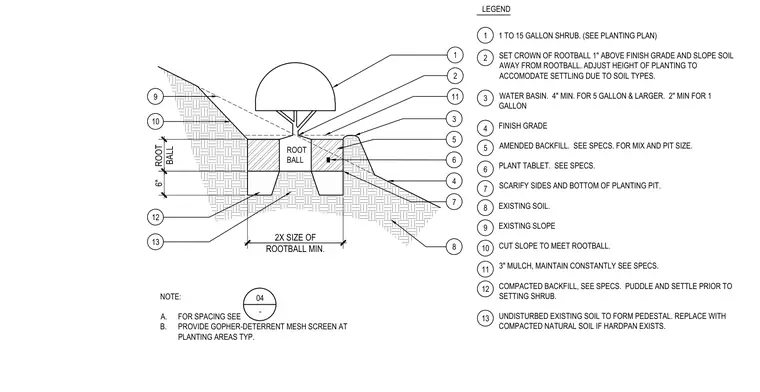

Installation of a one to fifteen gallon shrub on an existing slope, featuring a planting pit sized to twice the root ball minimum. The root ball crown is set one inch above the finish grade with soil sloped away to accommodate settling, and an undisturbed existing soil pedestal is left at the base. A water basin of four inches minimum is provided for five gallon and larger shrubs, alongside amended backfill, plant tablets, scarified pit sides, and a three inch layer of mulch. Gopher-deterrent mesh screen is included at planting areas typically, and the existing slope is cut back to meet the root ball.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
