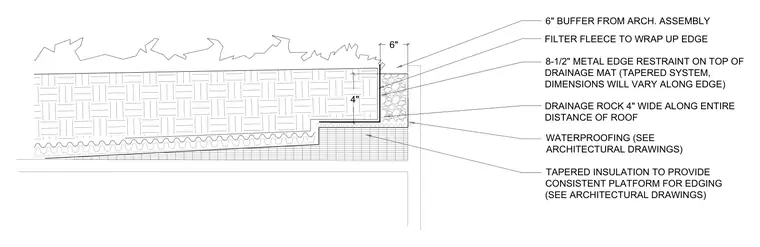

An eight-and-one-half-inch metal edge restraint bears directly on top of the drainage mat over tapered insulation, which provides a consistent platform for the edging. A six-inch buffer zone separates the planting media from the roof edge, with filter fleece wrapping up the edge of the assembly. A four-inch-wide band of drainage rock runs along the entire distance of the roof. Waterproofing is detailed per architectural drawings beneath the tapered insulation.
6" 6" BUFFER FROM ARCH. ASSEMBLY FILTER FLEECE TO WRAP UP EDGE 8-1/2" METAL EDGE RESTRAINT ON TOP OF DRAINAGE MAT (TAPERED SYSTEM, DIMENSIONS WILL VARY ALONG EDGE) DRAINAGE ROCK 4" WIDE ALONG ENTIRE DISTANCE OF ROOF WATERPROOFING (SEE ARCHITECTURAL DRAWINGS) TAPERED INSULATION TO PROVIDE CONSISTENT PLATFORM FOR EDGING (SEE ARCHITECTURAL DRAWINGS) 4"
