Ball Valve Installation in Valve Box

Materials

Steel Stainless Steel Brick

Elements

Connections / Plates

Connections

Welded Connection Bolted Connection

About this detail

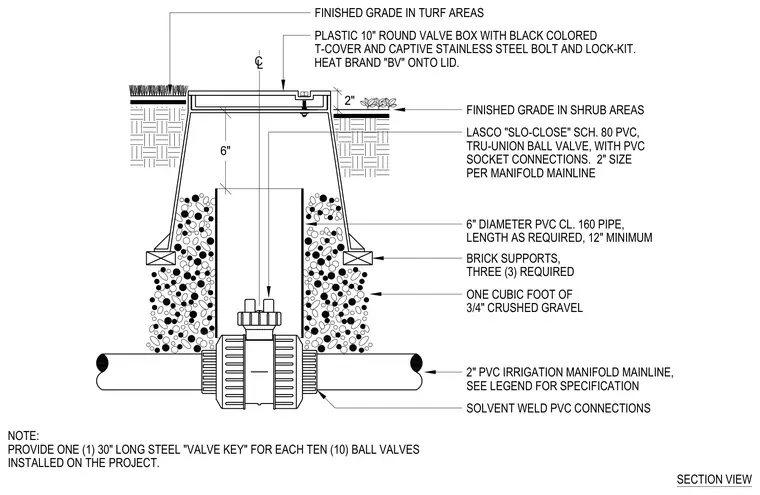

A two-inch PVC irrigation manifold mainline connects via solvent-weld socket connections to a three-piece true-union ball valve. The valve is enclosed inside a six-inch diameter PVC class 160 pipe sleeve of required length with a minimum twelve-inch depth, supported by three brick supports and bedded in one cubic foot of three-quarter-inch crushed gravel. A plastic ten-inch round valve box with a black-colored T-cover, captive stainless-steel bolt and lock-kit, and heat-branded "BV" lid sits flush with finished grade in turf or shrub areas. One thirty-long steel valve key is provided for each ten ball valves installed on the project.
