Structural · L-KV67P

Cold-Formed Steel Wall Backing Plate Details

Materials

Elements

Connections / Plates Doors Floors / Slabs Millwork / Casework Partitions Railings / Guards Walls

About this detail

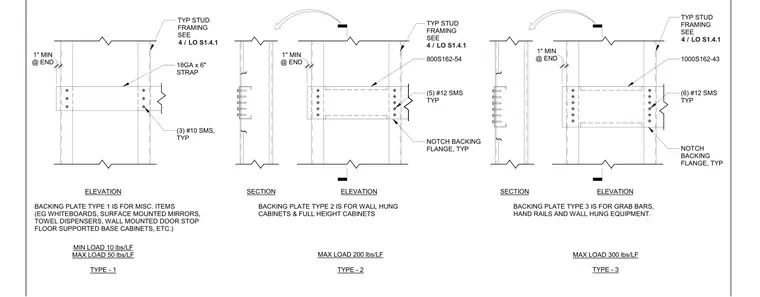

The drawing illustrates elevations and sections of cold-formed steel stud framing with various backing plate installations designated as Type 1, Type 2, and Type 3. It details strap and stud dimensions, screw fastenings such as self-tapping sheet metal screws, notched backing flanges, and associated load ratings for miscellaneous items, wall-hung cabinets, and grab bars.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
