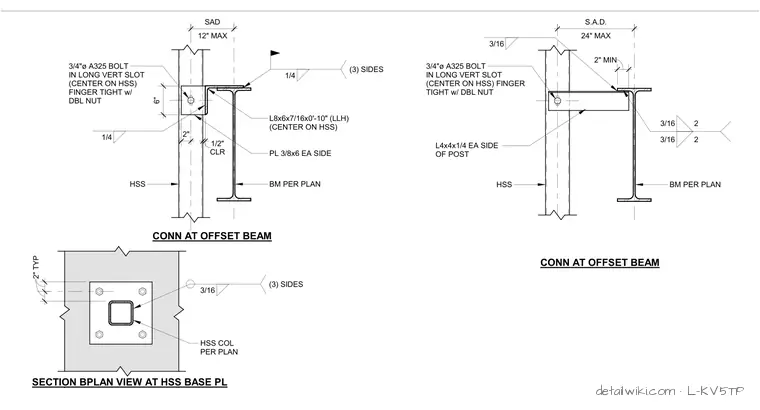

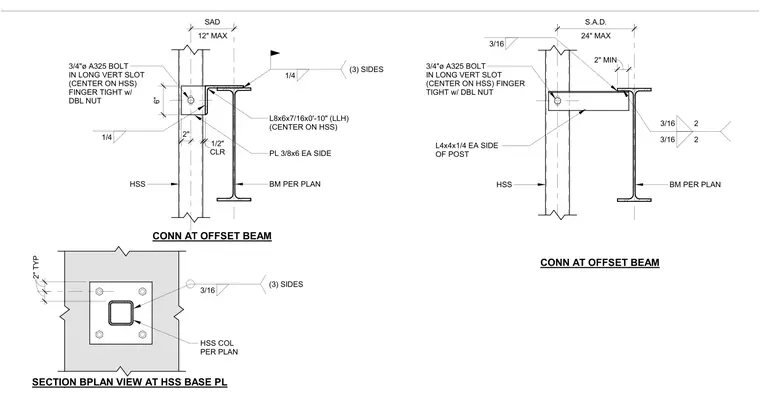

An offset steel beam connects to a hollow structural section column using an L8x6x7/16 by zero-foot-ten-inch angle centered on the hollow structural section with a three-eighths-inch plate on each side. A three-quarter-inch-diameter A325 bolt in a long vertical slot is installed finger-tight with double nuts, allowing vertical movement with a one-half-inch clearance. A quarter-inch fillet weld is applied to three sides of the connection angle. An alternate offset beam connection utilizes L4x4x1/4 angles on each side of the post with a similar slotted bolt assembly. The hollow structural section column base plate detail shows a square base plate anchored with four anchor bolts and three-sixteenths-inch fillet welds on three sides.
CONN AT OFFSET BEAM SECTION BPLAN VIEW AT HSS BASE PL HSS 12" MAX SAD BM PER PLAN CLR 1/2" 2" 6" L8x6x7/16x0'-10" (LLH) (CENTER ON HSS) 1/4 (3) SIDES 3/4"ø A325 BOLT IN LONG VERT SLOT (CENTER ON HSS) FINGER TIGHT w/ DBL NUT 1/4 PL 3/8x6 EA SIDE 2" TYP 2" TYP HSS COL PER PLAN 3/16 (3) SIDES CONN AT OFFSET BEAM BM PER PLAN L4x4x1/4 EA SIDE OF POST HSS 3/4"ø A325 BOLT IN LONG VERT SLOT (CENTER ON HSS) FINGER TIGHT w/ DBL NUT 24" MAX S.A.D. 2" MIN 3/16 2 3/16 2 3/16
