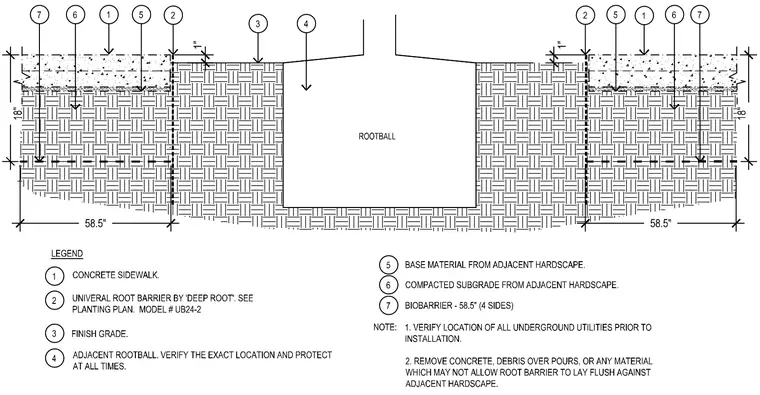

A universal root barrier model UB24-2 by Deep Root is installed vertically adjacent to a concrete sidewalk and an adjacent tree rootball, extending eighteen inches below finish grade. The assembly sits within compacted subgrade and base material matching the adjacent hardscape, with a fifty-eight-and-a-half-inch biobarrier dimension extending across four sides. All underground utilities must be verified prior to installation, and any concrete debris or over pours must be removed to allow the root barrier to lay flush against the hardscape.
1" 1 2 3 4 5 6 3 4 ROOTBALL LEGEND CONCRETE SIDEWALK. UNIVERAL ROOT BARRIER BY 'DEEP ROOT'. SEE PLANTING PLAN. MODEL # UB24-2 FINISH GRADE. ADJACENT ROOTBALL. VERIFY THE EXACT LOCATION AND PROTECT AT ALL TIMES. COMPACTED SUBGRADE FROM ADJACENT HARDSCAPE. BASE MATERIAL FROM ADJACENT HARDSCAPE. NOTE: 1. VERIFY LOCATION OF ALL UNDERGROUND UTILITIES PRIOR TO INSTALLATION. 2. REMOVE CONCRETE, DEBRIS OVER POURS, OR ANY MATERIAL WHICH MAY NOT ALLOW ROOT BARRIER TO LAY FLUSH AGAINST ADJACENT HARDSCAPE. 1" 1 1 2 2 5 5 6 6 7 7 7 BIOBARRIER - 58.5" (4 SIDES) 18" 18" 58.5" 58.5"
