A vinyl coated chain link gate stands at a height of forty-two inches typical, featuring a color determined by the landscape architect. Graphic architectural mesh attaches along the fencing system per the landscape specifications. The support posts embed into concrete slabs per structural requirements.

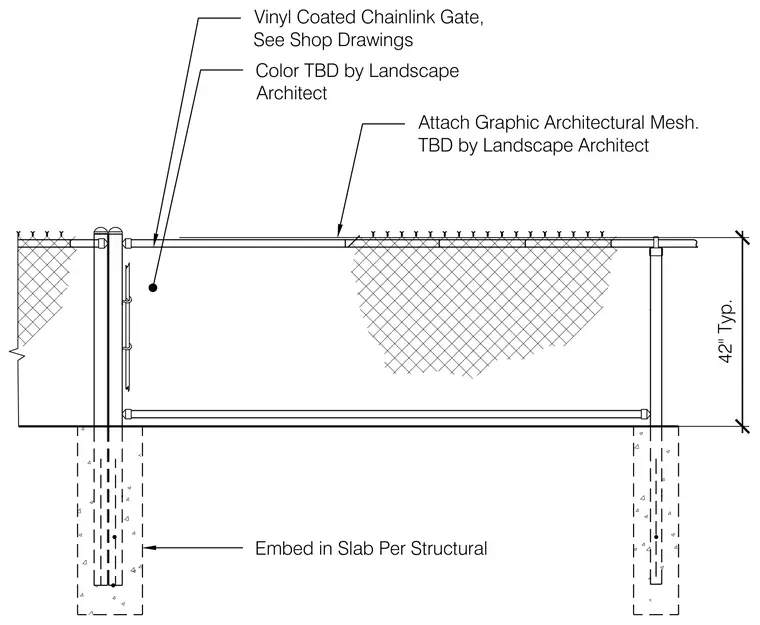

Vinyl Coated Chainlink Gate, See Shop Drawings 42" Typ. Color TBD by Landscape Architect Embed in Slab Per Structural Attach Graphic Architectural Mesh. TBD by Landscape Architect
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
