L-KQJWS — Typical Exterior Multiple Studs

Landscape · L-KQJWS

Typical Exterior Multiple Studs

Units: imperial
Sheet: LO-S1.4.1
Discipline: Landscape

Materials

Cold-formed Steel Concrete Steel

Elements

Anchors / Embeds Connections / Plates Floors / Slabs Walls

Connections

Base Plate / Anchorage Embed Plate

Text on the drawing

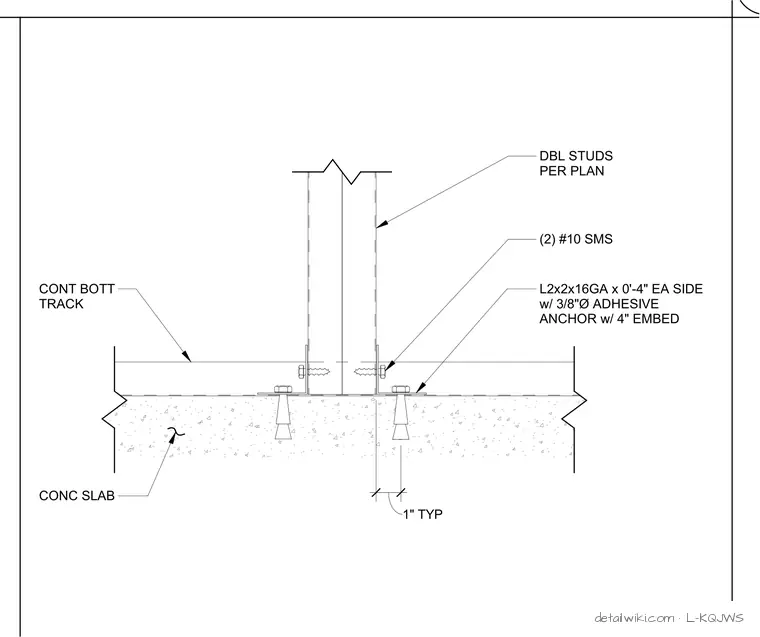

DBL STUDS PER PLAN 1" TYP (2) #10 SMS CONT BOTT TRACK CONC SLAB L2x2x16GA x 0'-4" EA SIDE w/ 3/8"Ø ADHESIVE ANCHOR w/ 4" EMBED
