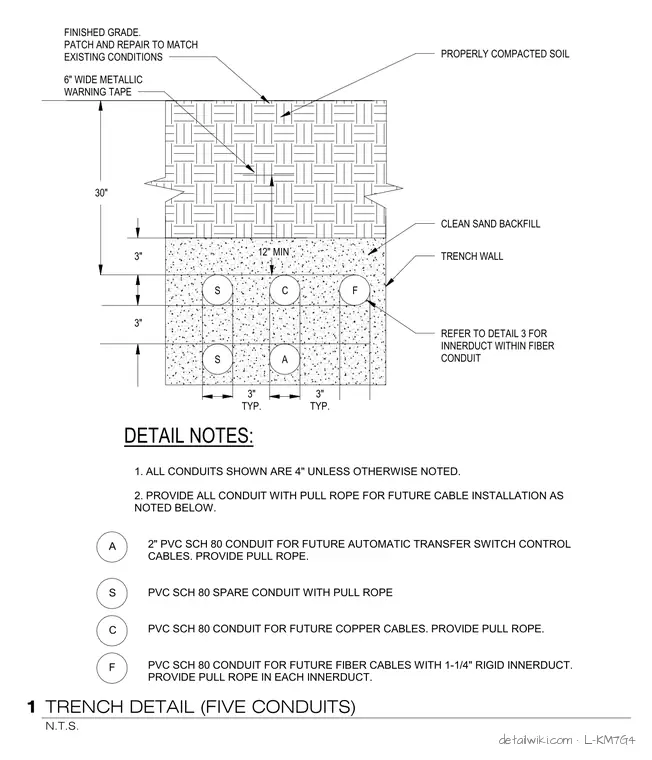

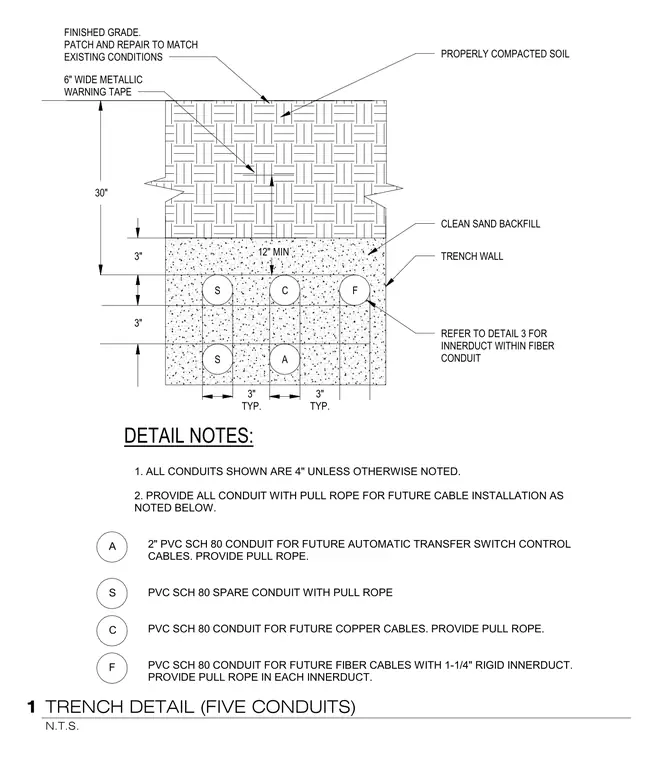

Five conduits are arranged within a trench backfilled with clean sand, maintaining a twelve-inch minimum clearance from finished grade. A six-wide metallic warning tape is installed above the sand bed within properly compacted soil. The trench walls contain various conduits including a two-inch polyvinyl chloride schedule eighty conduit for future automatic transfer switch control cables, spare polyvinyl chloride schedule eighty conduits, polyvinyl chloride schedule eighty conduits for future copper cables, and a polyvinyl chloride schedule eighty conduit for future fiber cables containing a one-and-one-quarter-inch rigid innerduct. All conduits are furnished with a pull rope for future cable installation. Finished grade is patched and repaired to match existing conditions.
DETAIL NOTES: 1. ALL CONDUITS SHOWN ARE 4" UNLESS OTHERWISE NOTED. 2. PROVIDE ALL CONDUIT WITH PULL ROPE FOR FUTURE CABLE INSTALLATION AS NOTED BELOW. 2" PVC SCH 80 CONDUIT FOR FUTURE AUTOMATIC TRANSFER SWITCH CONTROL CABLES. PROVIDE PULL ROPE. PVC SCH 80 SPARE CONDUIT WITH PULL ROPE PVC SCH 80 CONDUIT FOR FUTURE COPPER CABLES. PROVIDE PULL ROPE. PVC SCH 80 CONDUIT FOR FUTURE FIBER CABLES WITH 1-1/4" RIGID INNERDUCT. PROVIDE PULL ROPE IN EACH INNERDUCT. A FINISHED GRADE. PATCH AND REPAIR TO MATCH EXISTING CONDITIONS 6" WIDE METALLIC WARNING TAPE PROPERLY COMPACTED SOIL CLEAN SAND BACKFILL 30" 3" 3" TYP. 12" MIN 3" C S TRENCH WALL S 3" TYP. F A S C F REFER TO DETAIL 3 FOR INNERDUCT WITHIN FIBER CONDUIT N.T.S. 1 TRENCH DETAIL (FIVE CONDUITS)
