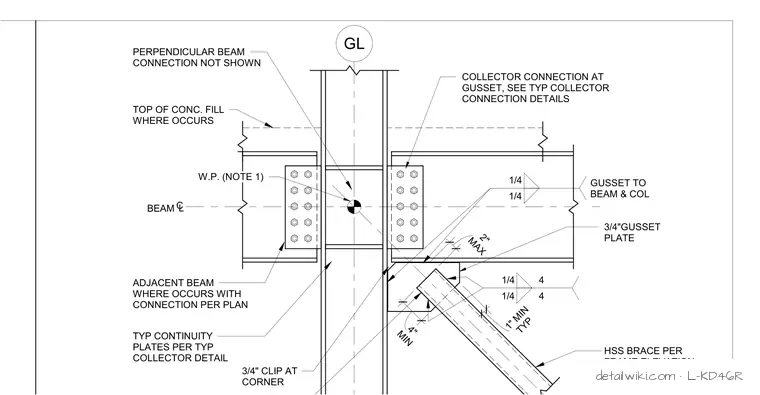

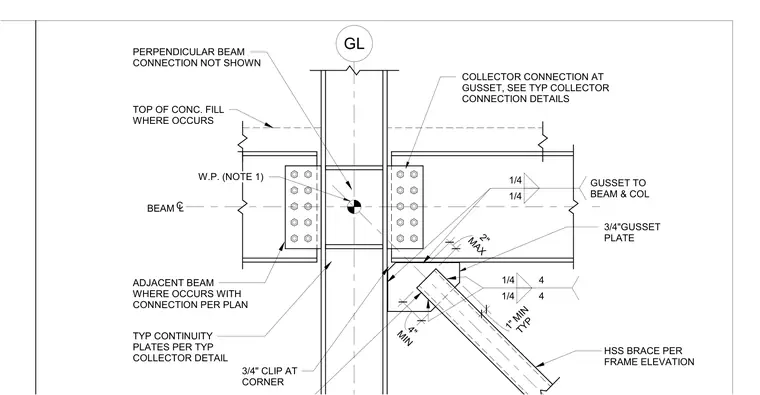

An HSS brace connects to a structural steel column and beam using a three-quarter inch thick gusset plate welded with quarter-inch fillet welds. Typical continuity plates are provided per the typical collector detail at the column web. The assembly accommodates adjacent beams with connections per plan and a top of concrete fill where it occurs. A three-quarter inch clip is detailed at the corner with specified minimum and maximum clearances.
PERPENDICULAR BEAM CONNECTION NOT SHOWN W.P. (NOTE 1) HSS BRACE PER FRAME ELEVATION 3/4"GUSSET PLATE TOP OF CONC. FILL WHERE OCCURS BEAM TYP CONTINUITY PLATES PER TYP COLLECTOR DETAIL 1/4 4 1/4 4 GL ADJACENT BEAM WHERE OCCURS WITH CONNECTION PER PLAN C L MIN 4" MAX 2" 1/4 1/4 GUSSET TO BEAM & COL 3/4" CLIP AT CORNER COLLECTOR CONNECTION AT GUSSET, SEE TYP COLLECTOR CONNECTION DETAILS TYP 1" MIN
