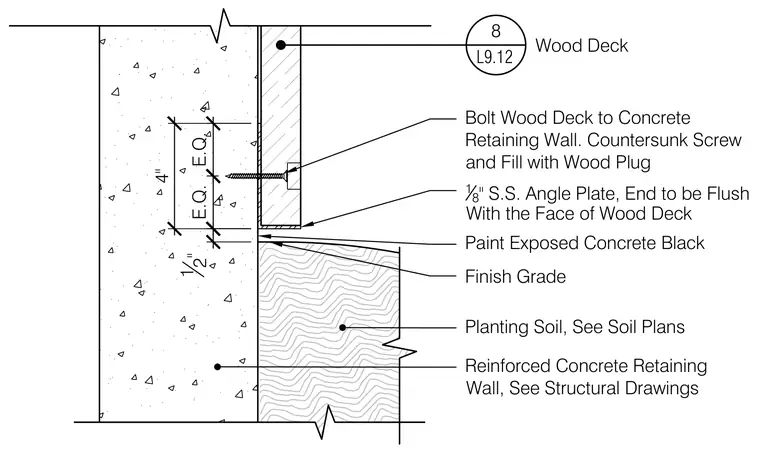

A wood deck is anchored to a reinforced concrete retaining wall using countersunk screws plugged with wood filler. An eighth-inch stainless steel angle plate supports the base of the wood deck, with its end finished flush to the deck face. The exposed concrete below the deck is painted black above the finish grade and adjacent planting soil.
Planting Soil, See Soil Plans 4" E.Q. E.Q. Paint Exposed Concrete Black 18 " S.S. Angle Plate, End to be Flush With the Face of Wood Deck 12" Finish Grade Reinforced Concrete Retaining Wall, See Structural Drawings 8 L9.12 Wood Deck Bolt Wood Deck to Concrete Retaining Wall. Countersunk Screw and Fill with Wood Plug
