Sculpture Base and Drainage Assembly on Structural Slab

Materials

Elements

Floors / Slabs Waterproofing / Flashing Insulation Site / Paving

About this detail

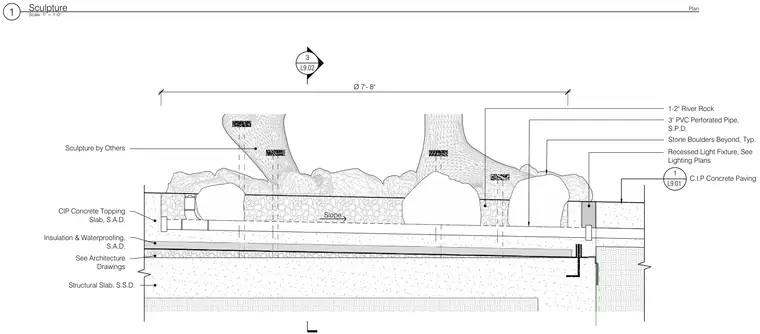

The assembly rests upon a structural slab supporting a sloped cast-in-place concrete topping slab, with an insulation and waterproofing layer integrated in between. A typical three-inch PVC perforated pipe runs within a one-to-two-inch river rock drainage layer to manage moisture. Surrounding stone boulders and cast-in-place concrete paving frame the base of the sculpture, which is provided by others. A recessed light fixture is positioned at the edge of the paving.
