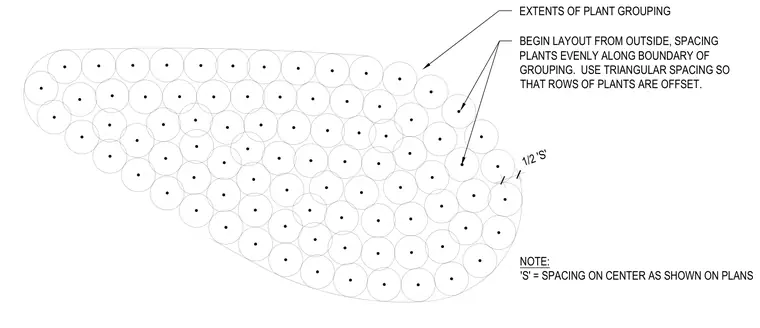

Layout begins from the outside edge of the plant grouping boundary, spacing plants evenly along the perimeter with a half-spacing offset. Triangular spacing is utilized to ensure that subsequent rows of plants are properly offset from one another. Spacing on center is determined per project plans.
NOTE: 'S' = SPACING ON CENTER AS SHOWN ON PLANS 1/2 'S' EXTENTS OF PLANT GROUPING BEGIN LAYOUT FROM OUTSIDE, SPACING PLANTS EVENLY ALONG BOUNDARY OF GROUPING. USE TRIANGULAR SPACING SO THAT ROWS OF PLANTS ARE OFFSET.
