Electrical · L-K6G9S

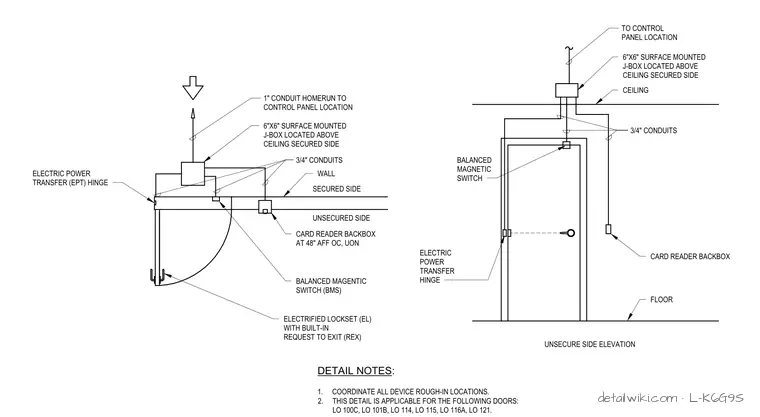

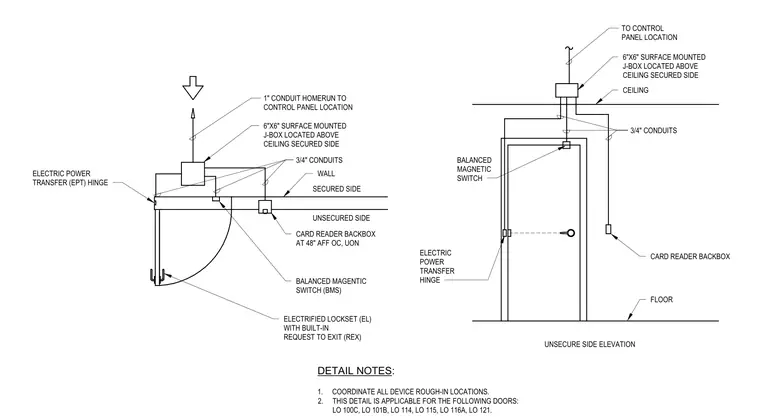

Single Door With Card Reader Detail

Elements

About this detail

Access control hardware integration for a single door assembly comprises a card reader backbox located at forty-eight inches above finished floor on center unless otherwise noted on the unsecured side. An electrified lockset with a built-in request to exit connects via wiring routed to an electric power transfer hinge. A balanced magnetic switch monitors door position, while three-quarter-inch conduits route device connections to a six-by-six-inch surface-mounted junction box located above the ceiling on the secured side. A one-inch conduit homerun extends from this junction box to the control panel location. All device rough-in locations must be coordinated.
