Landscape · L-K4EA5

Perimeter Construction Fence

Materials

Elements

About this detail

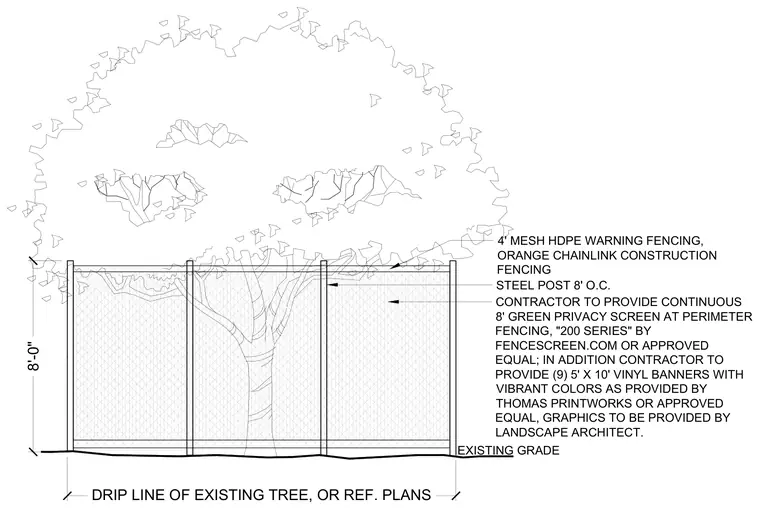

A perimeter construction fence assembly is set along the drip line of an existing tree or per reference plans over existing grade. Steel posts are spaced eight feet on center to support four-foot mesh high-density polyethylene warning fencing and orange chainlink construction fencing standing at an overall height of eight feet. The contractor provides a continuous eight-foot green privacy screen at the perimeter fencing, specified as the 200 Series by Fencescreen.com or approved equal. In addition, the contractor provides nine five-foot by ten-foot vinyl banners with vibrant colors by Thomas Printworks or approved equal, with graphics provided by the landscape architect.
