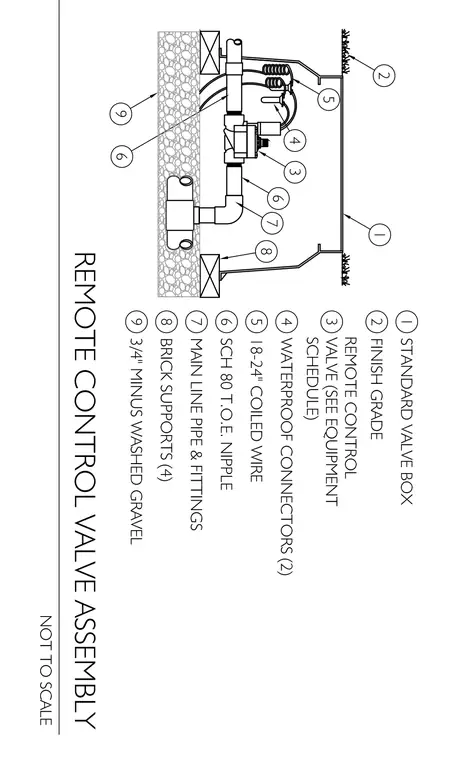

A standard valve box is set into finish grade with a surrounding layer of three-quarter-inch minus washed gravel. The assembly contains a remote control valve connected to schedule eighty thread-one-end nipples, main line pipe and fittings, and brick supports underneath. Waterproof connectors tie into eighteen to twenty-four inch coiled wire loops for the valve control. Four brick supports carry the weight of the piping configuration inside the enclosure.
