An exterior concealed door closer is integrated into a door frame assembly featuring a door leaf sized per schedule and a concealed door operator specified in hardware submittals. Continuous primary sealant is applied on all sides typically between the frame and adjacent construction. The wall assembly consists of six-inch cold-formed metal stud framing with batt insulation and a vapor retarder as occurs. A hinged access panel is suspended from a kicker stud and finished with square edge wood trim fastened to a bent metal angle with a one-quarter-inch minimum clearance.

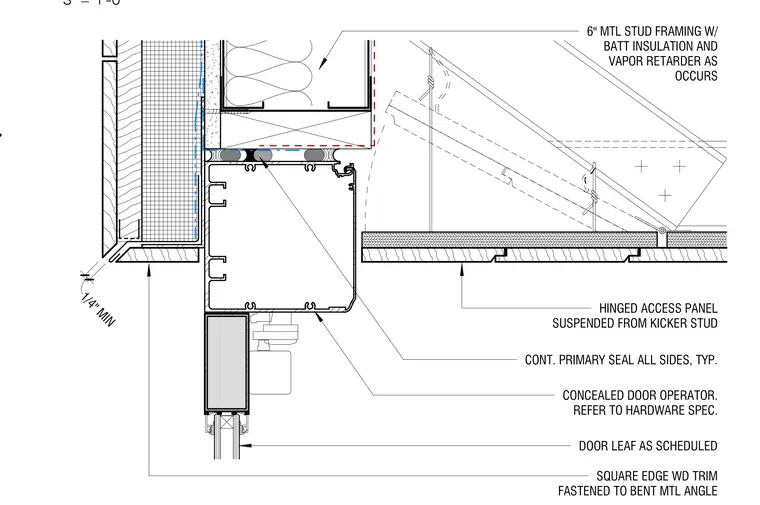

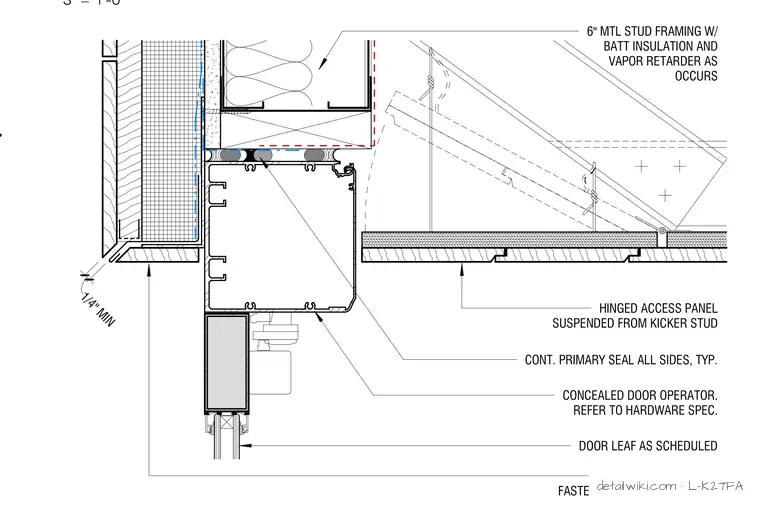

CONCEALED DOOR OPERATOR. REFER TO HARDWARE SPEC. DOOR LEAF AS SCHEDULED 6" MTL STUD FRAMING W/ BATT INSULATION AND VAPOR RETARDER AS OCCURS CONT. PRIMARY SEAL ALL SIDES, TYP. HINGED ACCESS PANEL SUSPENDED FROM KICKER STUD SQUARE EDGE WD TRIM FASTENED TO BENT MTL ANGLE 1/4" MIN 3" = 1'-0"
