A trench is excavated to a minimum depth of thirty-six inches and bedded with clean sand providing two inches of clearance around the conduits. The assembly houses a lateral line with a PVC Schedule 40 sleeve, a pressure main line with a PVC Schedule 40 sleeve twice the diameter of the working pipe, and a control and computer hardware wire sleeve spaced six inches apart. Clean backfill is placed above the sand bed in six-inch lifts up to the hardscape surface. All sleeves must extend a minimum of twelve inches beyond hardscape edges and include APWA standard marking tape installed twelve inches below the surface.

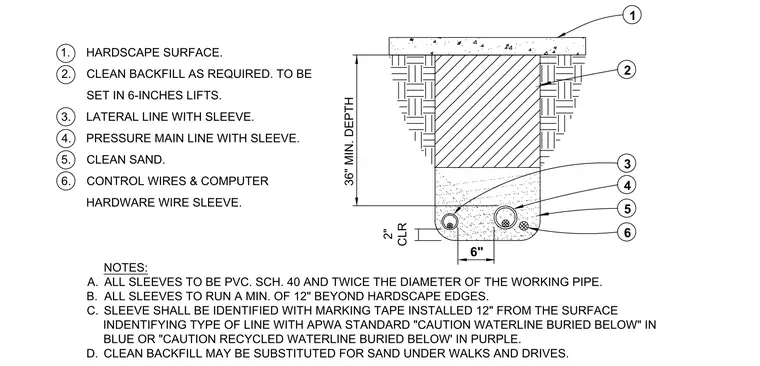

1 2 3 4 5 6 36" MIN. DEPTH 2" CLR 6" NOTES: A. ALL SLEEVES TO BE PVC. SCH. 40 AND TWICE THE DIAMETER OF THE WORKING PIPE. B. ALL SLEEVES TO RUN A MIN. OF 12" BEYOND HARDSCAPE EDGES. C. SLEEVE SHALL BE IDENTIFIED WITH MARKING TAPE INSTALLED 12" FROM THE SURFACE INDENTIFYING TYPE OF LINE WITH APWA STANDARD "CAUTION WATERLINE BURIED BELOW" IN BLUE OR "CAUTION RECYCLED WATERLINE BURIED BELOW' IN PURPLE. D. CLEAN BACKFILL MAY BE SUBSTITUTED FOR SAND UNDER WALKS AND DRIVES. 1. HARDSCAPE SURFACE. 2. CLEAN BACKFILL AS REQUIRED. TO BE SET IN 6-INCHES LIFTS. 3. LATERAL LINE WITH SLEEVE. 4. PRESSURE MAIN LINE WITH SLEEVE. 5. CLEAN SAND. 6. CONTROL WIRES & COMPUTER HARDWARE WIRE SLEEVE.
