Text on the drawing

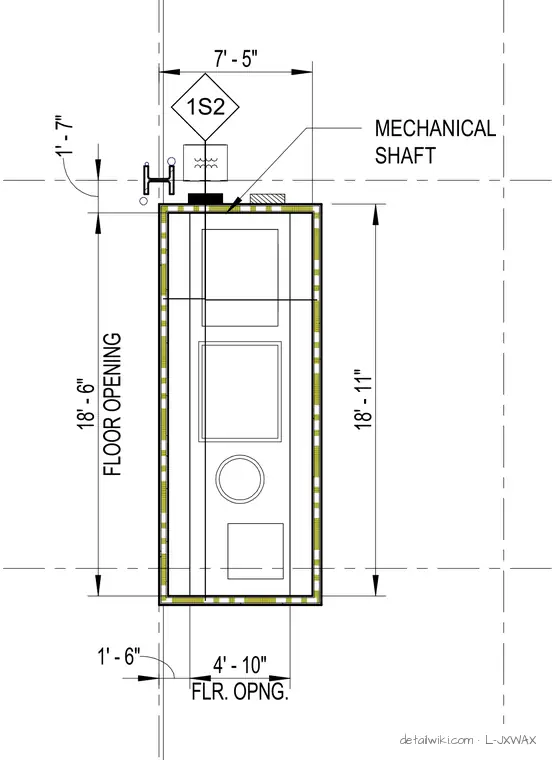

1' - 6" FLR. OPNG. 4' - 10" 1' - 7" FLOOR OPENING 18' - 6" 1S2 MECHANICAL SHAFT 18' - 11" 7' - 5"
