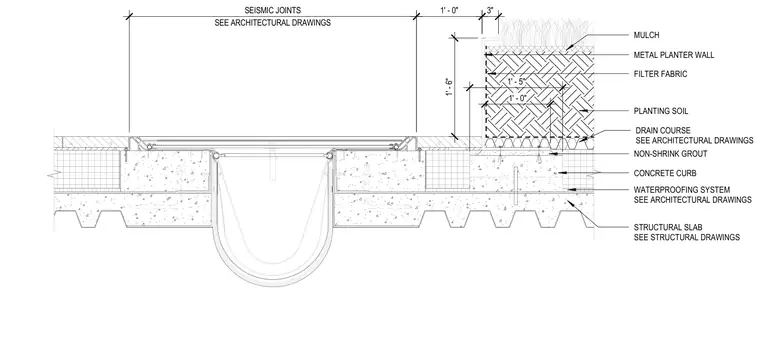

A planting wall assembly is positioned adjacent to a seismic joint on a structural slab. A metal planter wall retains planting soil, which sits over a drain course, filter fabric, and mulch layer. The planter rests on a concrete curb set over non-shrink grout and a waterproofing system applied to the structural slab. A seismic expansion joint spans across the structural slab adjacent to the planter curb.
1' - 0" 1' - 6" SEE ARCHITECTURAL DRAWINGS SEISMIC JOINTS CONCRETE CURB DRAIN COURSE SEE ARCHITECTURAL DRAWINGS PLANTING SOIL METAL PLANTER WALL NON-SHRINK GROUT WATERPROOFING SYSTEM SEE ARCHITECTURAL DRAWINGS STRUCTURAL SLAB SEE STRUCTURAL DRAWINGS 1' - 0" 1' - 5" MULCH 3" FILTER FABRIC
