Basketball Standard Elevation and Footing Detail

Materials

Elements

Columns Foundations / Footings Site / Paving

About this detail

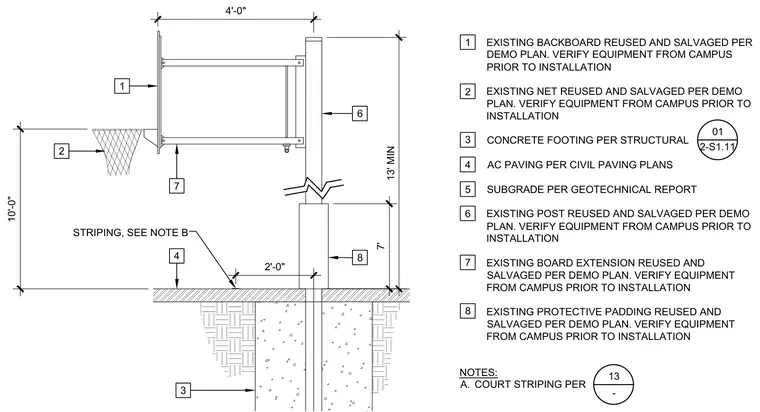

Installation of a salvaged basketball standard assembly anchored into the site paving. An existing structural post is supported by a concrete footing designed per structural engineering requirements, set below asphaltic concrete paving and subgrade prepared per geotechnical recommendations. The assembly incorporates a salvaged backboard, net, board extension, and protective padding, with equipment verified from campus prior to installation. Court striping is provided at the playing surface at a specified dimension from the post.
