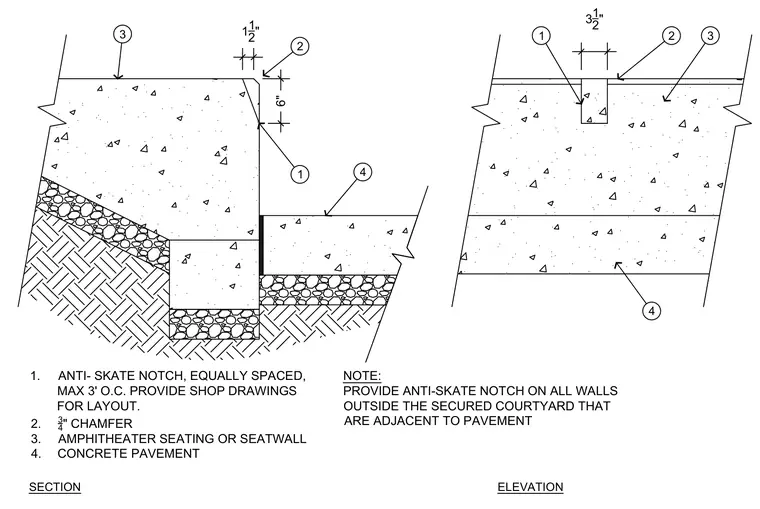

An anti-skate notch configuration is incorporated into concrete amphitheater seating or seatwalls adjacent to concrete pavement. The notch is spaced equally at a maximum of three feet on center and requires shop drawings for layout verification. A three-quarter-inch chamfer is detailed at the top outside edge of the seatwall. Concrete pavement abuts the lower portion of the wall structure. Anti-skate notches are specified on all walls outside secured courtyards that remain adjacent to pavement.
4 1 3 31 2" SECTION ELEVATION 6" 11 2" 2 2 1 3 4 1. ANTI- SKATE NOTCH, EQUALLY SPACED, MAX 3' O.C. PROVIDE SHOP DRAWINGS FOR LAYOUT. 2. 3 4 " CHAMFER 3. AMPHITHEATER SEATING OR SEATWALL 4. CONCRETE PAVEMENT NOTE: PROVIDE ANTI-SKATE NOTCH ON ALL WALLS OUTSIDE THE SECURED COURTYARD THAT ARE ADJACENT TO PAVEMENT
