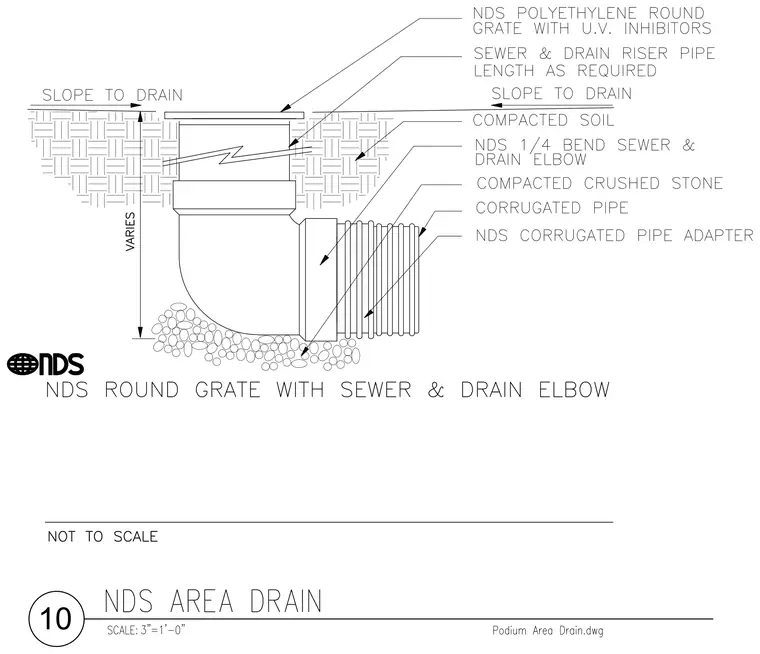

An NDS polyethylene round grate with ultraviolet inhibitors seats atop a sewer and drain riser pipe of variable length. The riser connects to an NDS one-quarter bend sewer and drain elbow, which transitions to a corrugated pipe using an NDS corrugated pipe adapter. The entire assembly is bedded on compacted crushed stone and surrounded by compacted soil graded to slope toward the drain.
