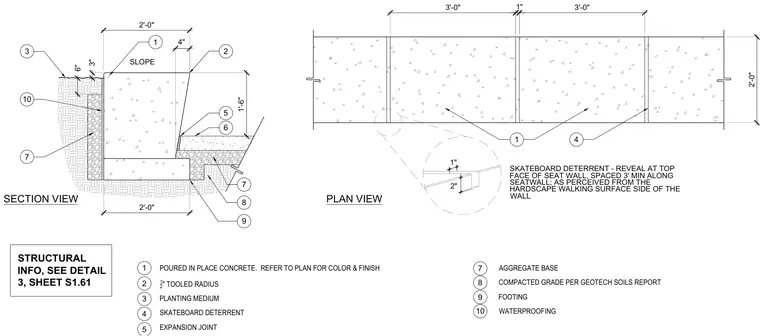

A poured-in-place concrete retaining seatwall features a sloped top surface and a half-inch tooled radius edge. A skateboard deterrent reveal measuring one inch by two inches is integrated into the top face of the wall at three-foot intervals along the hardscape side. The wall rests on a concrete footing supported by compacted grade and aggregate base, with waterproofing applied to the retained soil side. Expansion joints are provided, and planting medium abuts the rear of the wall.
1'-6" 2'-0" SECTION VIEW 1 2 2'-0" 5 6 2'-0" 3'-0" PLAN VIEW 8 9 7 10 3 4" SLOPE 1" 3'-0" 2 POURED IN PLACE CONCRETE. REFER TO PLAN FOR COLOR & FINISH 1 2 " TOOLED RADIUS PLANTING MEDIUM SKATEBOARD DETERRENT EXPANSION JOINT 1 3 8 7 4 9 AGGREGATE BASE COMPACTED GRADE PER GEOTECH SOILS REPORT FOOTING WATERPROOFING 10 1 2" 1" SKATEBOARD DETERRENT - REVEAL AT TOP FACE OF SEAT WALL, SPACED 3' MIN ALONG SEATWALL; AS PERCEIVED FROM THE HARDSCAPE WALKING SURFACE SIDE OF THE WALL 5 4 7 3" 6" STRUCTURAL INFO, SEE DETAIL 3, SHEET S1.61
