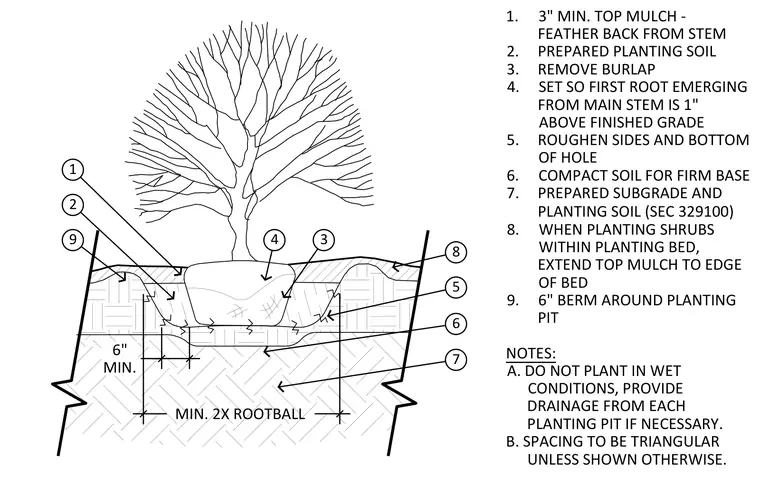

Shrubs are installed in a planting pit sized to a minimum of twice the rootball width with roughened sides and bottom for a firm base. The rootball sits on compacted soil so that the first root emerging from the main stem rests one inch above the finished grade. Burlap and bindings are removed before backfilling with prepared planting soil. The surface is finished with a three-inch top mulch layer feathered back from the stem and a six-inch earth berm around the planting pit.
MIN. 2X ROOTBALL 1. 3" MIN. TOP MULCH - FEATHER BACK FROM STEM 2. PREPARED PLANTING SOIL 3. REMOVE BURLAP 4. SET SO FIRST ROOT EMERGING FROM MAIN STEM IS 1" ABOVE FINISHED GRADE 5. ROUGHEN SIDES AND BOTTOM OF HOLE 6. COMPACT SOIL FOR FIRM BASE 7. PREPARED SUBGRADE AND PLANTING SOIL (SEC 329100) 8. WHEN PLANTING SHRUBS WITHIN PLANTING BED, EXTEND TOP MULCH TO EDGE OF BED 9. 6" BERM AROUND PLANTING PIT NOTES: A. DO NOT PLANT IN WET CONDITIONS, PROVIDE DRAINAGE FROM EACH PLANTING PIT IF NECESSARY. B. SPACING TO BE TRIANGULAR UNLESS SHOWN OTHERWISE. 6" MIN. 1 2 9 8 5 6 4 3 7
