Typical Office Base Cabinet Section

Materials

Elements

About this detail

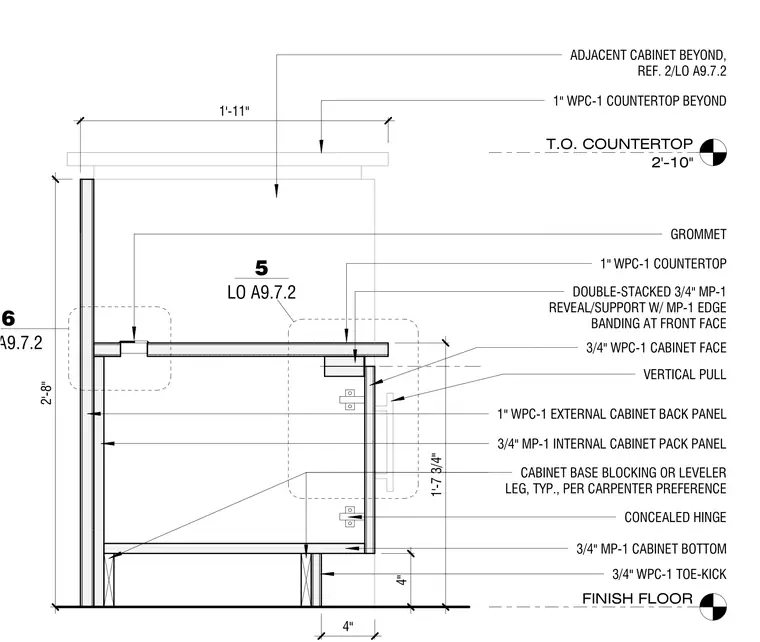

The drawing illustrates a millwork casework assembly featuring a base cabinet with a 1-inch wood-plastic composite countertop, double-stacked 3/4-inch reveal/support elements, and a 3/4-inch cabinet face with a vertical pull. Internal components include concealed hinges, a 3/4-inch internal cabinet pack panel, and cabinet base blocking or leveler legs resting on the finish floor. Additional callouts indicate a grommet, a 4-inch toe-kick, and adjacent cabinetry beyond.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
