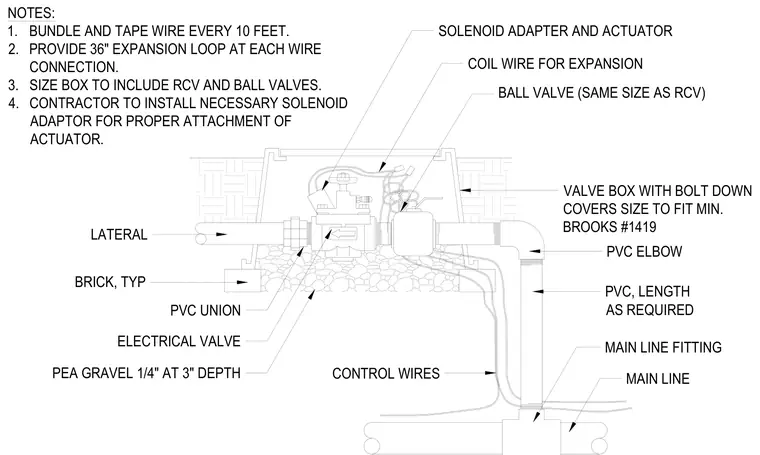

The remote control valve and matching ball valve connect to PVC piping resting on a bed of one-quarter-inch pea gravel at a three-inch depth. A PVC union joins the lateral line to the electrical valve, while a PVC elbow and variable-length PVC pipe connect the assembly down to the main line fitting. Control wires feature a thirty-six-inch expansion loop at each wire connection and are bundled and taped every ten feet. The valve box is sized to fit a minimum Brooks #1419 box with bolt-down covers, set over typical brick supports. A solenoid adapter and actuator attach to the valve, with coiled wire provided for expansion.
NOTES: 1. BUNDLE AND TAPE WIRE EVERY 10 FEET. 2. PROVIDE 36" EXPANSION LOOP AT EACH WIRE CONNECTION. 3. SIZE BOX TO INCLUDE RCV AND BALL VALVES. 4. CONTRACTOR TO INSTALL NECESSARY SOLENOID ADAPTOR FOR PROPER ATTACHMENT OF ACTUATOR. ELECTRICAL VALVE PEA GRAVEL 1/4" AT 3" DEPTH PVC, LENGTH AS REQUIRED CONTROL WIRES MAIN LINE FITTING MAIN LINE VALVE BOX WITH BOLT DOWN COVERS SIZE TO FIT MIN. BROOKS #1419 BALL VALVE (SAME SIZE AS RCV) COIL WIRE FOR EXPANSION SOLENOID ADAPTER AND ACTUATOR LATERAL BRICK, TYP PVC UNION PVC ELBOW
