Landscape · L-JPRY8

Remote Control Valve

Materials

Elements

About this detail

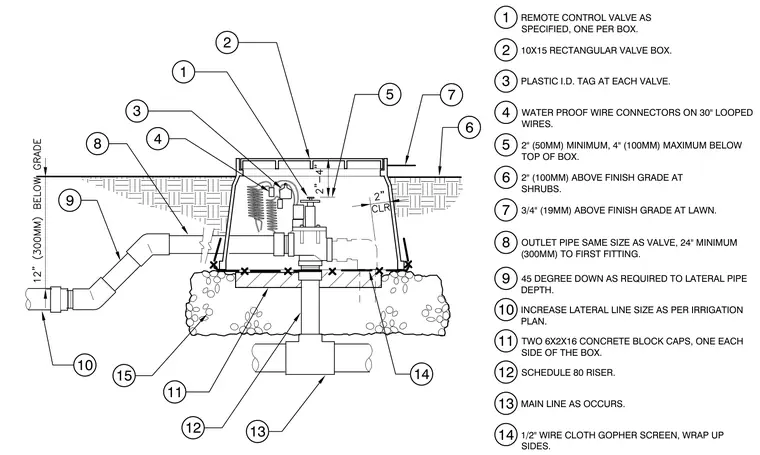

A remote control valve is housed within a ten-by-fifteen-inch rectangular plastic valve box. The assembly connects to a main line as occurs via a schedule eighty riser, fitted with a half-inch wire cloth gopher screen wrapped up the sides and supported by two six-by-two-by-sixteen-inch concrete block caps on each side. Waterproof wire connectors with thirty-inch looped wires and a plastic identification tag are provided at each valve. The outlet pipe matches the valve size and extends twenty-four inches minimum to the first fitting, dropping forty-five degrees as required to the lateral pipe depth before increasing size per the irrigation plan. The top of the valve box is positioned two to four inches below the finish grade, extending two inches above finish grade at shrubs and three-quarters of an inch above finish grade at lawns.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
