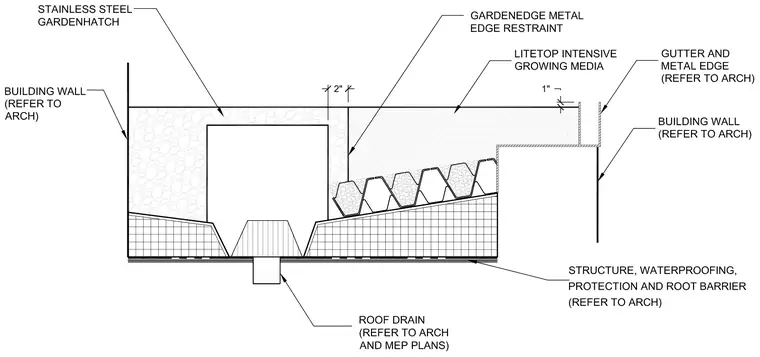

An intensive green roof section integrates a stainless steel garden hatch and a roof drain flanked by sloped growing media. A gardenedge metal edge restraint separates the media zones, maintaining a two-inch clearance. Litetop intensive growing media rests over a drainage layer and insulation, bounded by a gutter and metal edge referencing architectural plans. The entire assembly bears upon a structural slab protected by waterproofing, insulation, and a root barrier.
