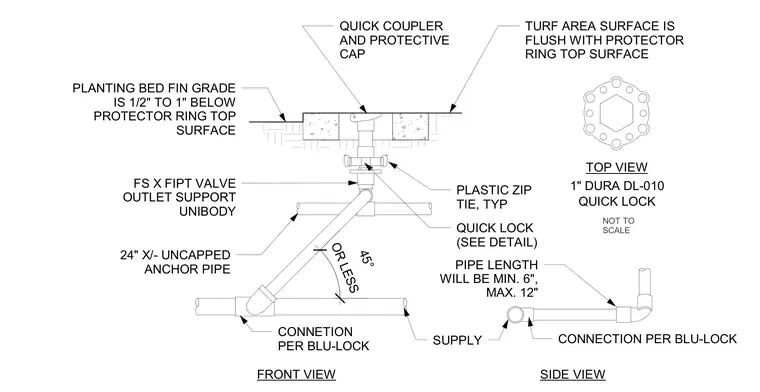

The quick coupler installation features a 1-inch Dura DL-010 quick lock with a protective cap mounted on a valve outlet support unibody. An unbanded 24-inch anchor pipe provides stability with connections per Blu-Lock and a minimum six-inch to maximum twelve-inch supply pipe length secured with plastic zip ties. In planting beds, the finished grade sits one-half inch to one inch below the protector ring top surface, while turf areas are installed flush with the ring.
TOP VIEW NOT TO SCALE 1" DURA DL-010 QUICK LOCK PLANTING BED FIN GRADE IS 1/2" TO 1" BELOW PROTECTOR RING TOP SURFACE QUICK COUPLER AND PROTECTIVE CAP TURF AREA SURFACE IS FLUSH WITH PROTECTOR RING TOP SURFACE FS X FIPT VALVE OUTLET SUPPORT UNIBODY 24" X/- UNCAPPED ANCHOR PIPE CONNETION PER BLU-LOCK PIPE LENGTH WILL BE MIN. 6", MAX. 12" SUPPLY PLASTIC ZIP TIE, TYP QUICK LOCK (SEE DETAIL) SIDE VIEW FRONT VIEW CONNECTION PER BLU-LOCK OR LESS 45°
