Structural · L-JNEWT

Framing Clip To Clt / Framing Clip To Angle

Materials

Cold-formed Steel Metal (misc.)Steel Timber / Wood

Elements

Arches Beams Connections / Plates Decks Roofs Walls

Connections

Deck Attachment Expansion / Slip Connection Timber / Mass-Timber Connection

About this detail

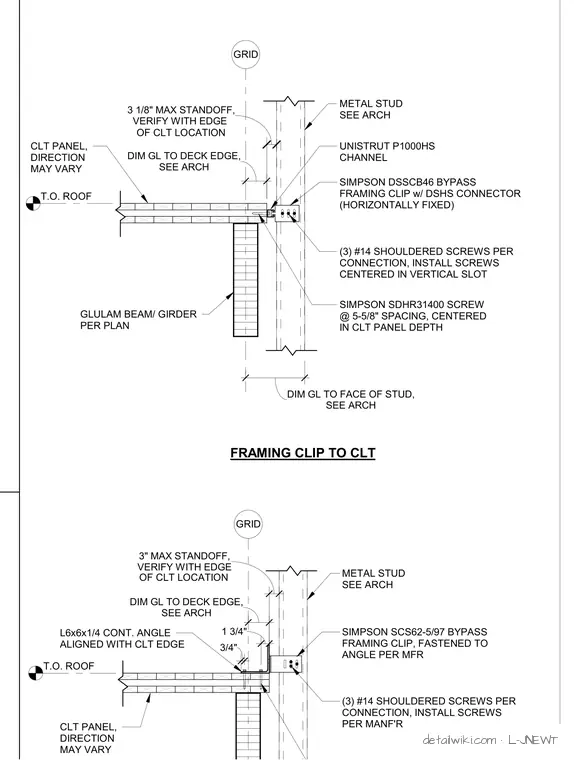

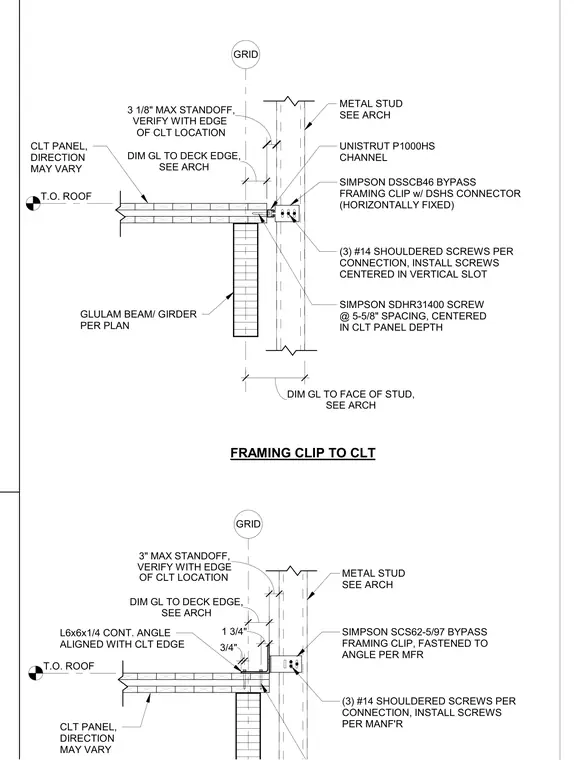

Cross-laminated timber roof panels connect to metal stud exterior walls and supporting glulam beams using heavy-duty bypass framing clips and continuous structural angles. The upper detail utilizes a Simpson DSSCB46 bypass framing clip with a horizontally fixed DSHS connector, secured with three number fourteen shouldered screws centered in the vertical slots, alongside Simpson SDHR31400 screws spaced at five and five-eighths inches centered in the CLT panel depth. Unistrut P1000HS channel is embedded at the deck edge. The lower detail features a continuous L6x6x1/4 angle aligned with the CLT panel edge and anchored with a Simpson SCS62-5/97 bypass framing clip fastened per manufacturer recommendations. Dimensions verify a maximum standoff of three to three and one-eighth inches from the grid line to the CLT edge and face of the stud.
