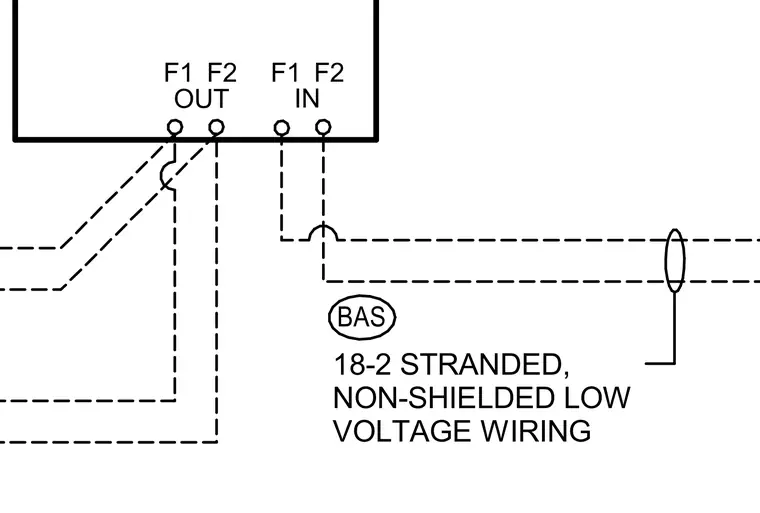

This diagram details the terminal connections for low voltage wiring using 18-2 stranded non-shielded cable. The wiring connects to input and output terminals labeled F1 and F2.
