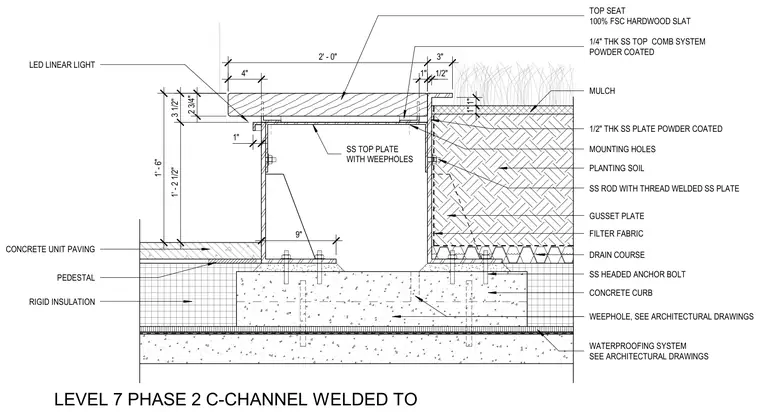

This assembly details a custom hardwood slat bench seat integrated with a raised planting bed atop a concrete curb. The bench features a 100 percent Forest Stewardship Council certified hardwood slat top seat supported by a powder-coated stainless steel top plate and a continuous C-channel steel frame with an integrated one-inch linear light. The adjacent planter curb is retained by a powder-coated stainless steel top comb system and stainless steel plates secured with gusset plates and threaded stainless steel rods. The steel framing anchors to a cast-in-place concrete curb using stainless steel headed anchor bolts over rigid insulation, a drainage course, filter fabric, and a waterproofing system sized per architectural drawings. Planting soil and mulch fill the raised bed, which includes weepholes for drainage.
1' - 6" 2' - 0" 3" 4" 1" 1/2" TOP SEAT 100% FSC HARDWOOD SLAT 1/2" THK SS PLATE POWDER COATED GUSSET PLATE SS HEADED ANCHOR BOLT 1/4" THK SS TOP COMB SYSTEM POWDER COATED CONCRETE CURB WEEPHOLE, SEE ARCHITECTURAL DRAWINGS WATERPROOFING SYSTEM SEE ARCHITECTURAL DRAWINGS 1" LED LINEAR LIGHT CONCRETE UNIT PAVING PEDESTAL RIGID INSULATION 9" DRAIN COURSE SS ROD WITH THREAD WELDED SS PLATE 1' - 2 1/2" 3 1/2" 2 3/4" MOUNTING HOLES MULCH PLANTING SOIL SS TOP PLATE WITH WEEPHOLES 1" 1" FILTER FABRIC LEVEL 7 PHASE 2 C-CHANNEL WELDED TO
