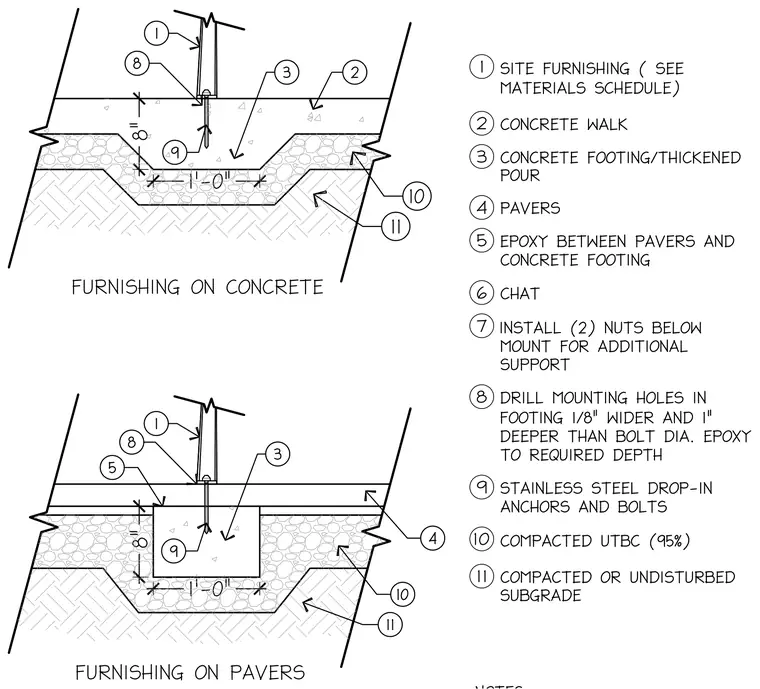

Site furnishings mount to a concrete walk and concrete footings over compacted aggregate base course and subgrade. The mounting connection utilizes stainless steel drop-in anchors and bolts set into drilled holes that are one-eighth inch wider and one inch deeper than the bolt diameter with epoxy. The installation includes two nuts below the mount for additional support. Pavers are bedded with epoxy over the concrete footing where specified.
