Quick Coupling Valve in Plastic Box Detail

Materials

Brick

Elements

Beams Site / Paving

Connections

Bolted Connection

About this detail

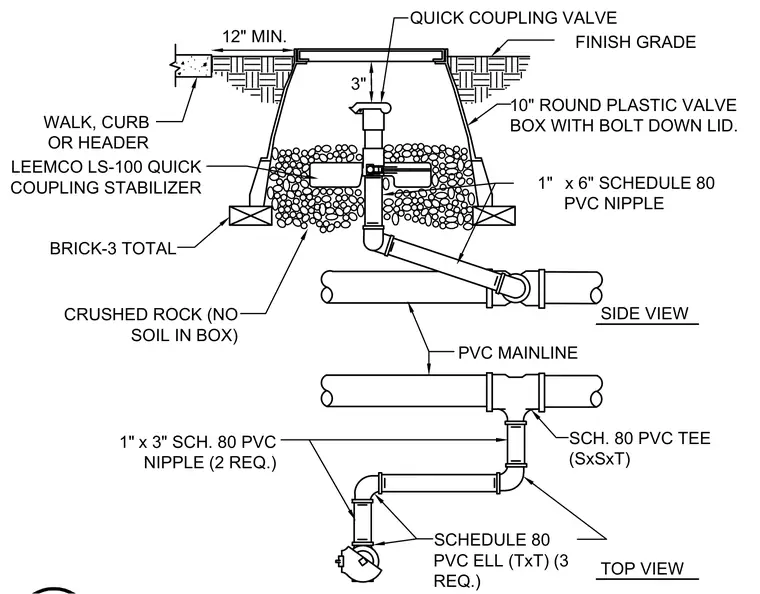

A quick coupling valve connects to a PVC mainline via a Schedule 80 PVC tee, three Schedule 80 PVC elbows, and two 1-inch by 3-inch Schedule 80 PVC nipples, plus an additional 1-inch by 6-inch Schedule 80 PVC nipple. The assembly sits inside a 10-inch round plastic valve box with a bolt-down lid, positioned flush with the finish grade and adjacent to a walk, curb, or header with a 12-inch minimum clearance. A Leemco LS-100 quick coupling stabilizer secures the valve within the box, which is backfilled with crushed rock containing no soil, resting on three total bricks.
