Landscape · L-JKHW2

Mechanical Shaft

Units: imperial
Sheet: L2
Discipline: Landscape

Elements

Roof / Floor Openings Stairs

Text on the drawing

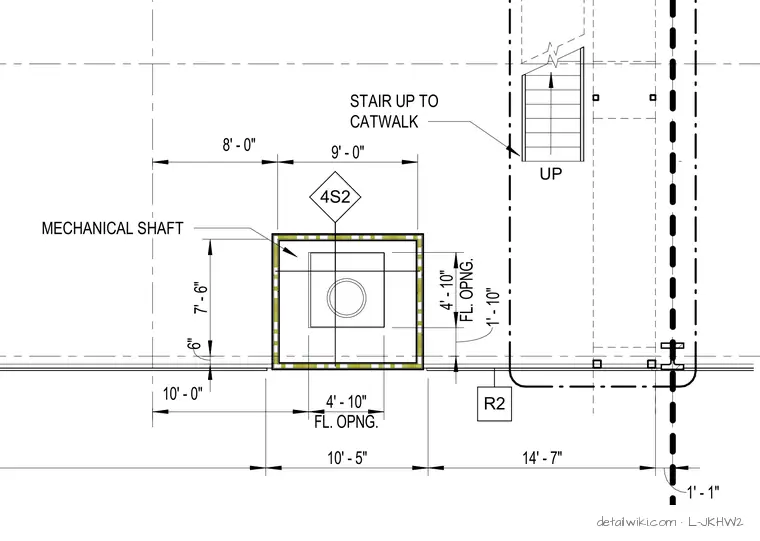

10' - 5" 14' - 7" 1' - 1" FL. OPNG. 4' - 10" 1' - 10" 4S2 R2 MECHANICAL SHAFT UP STAIR UP TO CATWALK 10' - 0" FL. OPNG. 4' - 10" 7' - 6" 6" 8' - 0" 9' - 0"
