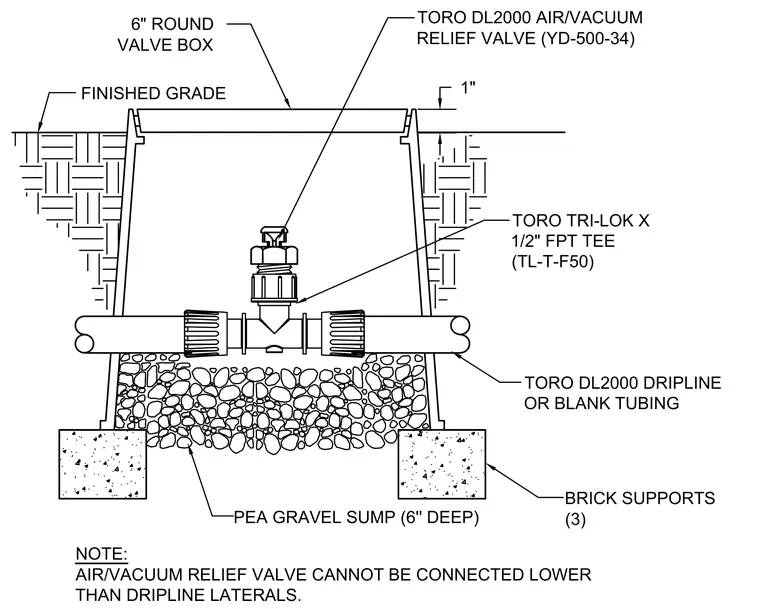

An irrigation air and vacuum relief valve connects to a dripline or blank tubing via a female pipe thread tee inside a 6-inch round valve box. The assembly rests on three brick supports over a 6-inch deep pea gravel sump below finished grade. The air and vacuum relief valve must be installed at a height not lower than the dripline laterals.
1" 6" ROUND VALVE BOX TORO DL2000 AIR/VACUUM RELIEF VALVE (YD-500-34) TORO TRI-LOK X 1/2" FPT TEE (TL-T-F50) TORO DL2000 DRIPLINE OR BLANK TUBING BRICK SUPPORTS (3) PEA GRAVEL SUMP (6'' DEEP) NOTE: AIR/VACUUM RELIEF VALVE CANNOT BE CONNECTED LOWER THAN DRIPLINE LATERALS. FINISHED GRADE
