Landscape · L-JJJ2K

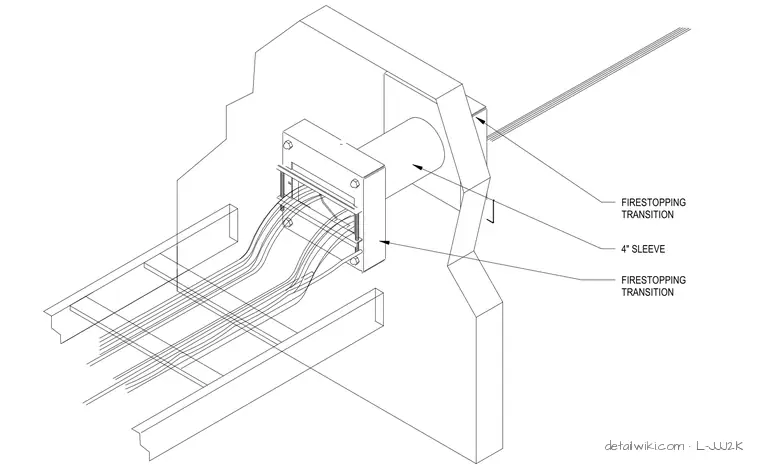

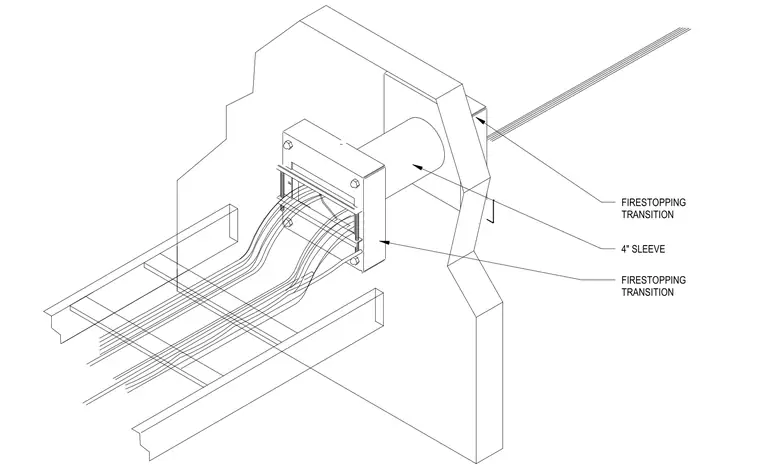

Through Fire Wall Ladder Type Cable Tray Detail

Units: imperial
Sheet: LO-T2.0.3
Discipline: Landscape

Materials

Metal (misc.)

Elements

Floors / Slabs Walls

Text on the drawing

FIRESTOPPING TRANSITION 4" SLEEVE FIRESTOPPING TRANSITION
